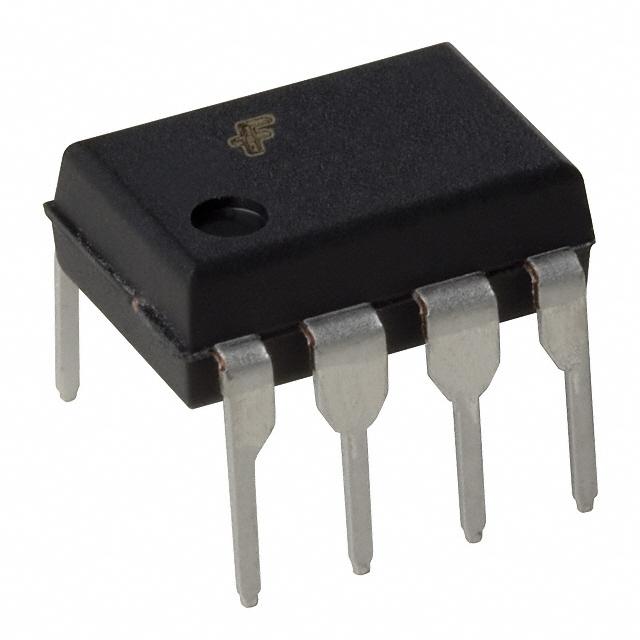

FAIRCHILD SEMICONDUCTOR 6N135M 光电耦合器, 晶体管输出, 高速, 1通道, DIP, 8 引脚, 50 mA, 5 kV, 7 %
The is a 1-channel 1Mbps high-speed Transistor Optocoupler consists of an AlGaAs LED optically coupled to a high-speed photodetector transistor. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocouplers by reducing the base-collector capacitance of the input transistor. An internal noise shield provides superior common mode rejection of up to 50,000V/µs.
- .
- 10kV/µs Superior CMR
- .
- CTR guaranteed over 0 to 70°C temperature range
输出电压 20 V
通道数 1
针脚数 8
正向电压 1.45 V
输入电流 16 mA
耗散功率 100 mW
隔离电压 5000 Vrms
正向电流 25 mA
输出电压Max 20 V
输入电流Min 25 mA
正向电压Max 1.7 V
正向电流Max 50 mA
下降时间 1.5 µs
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Through Hole
引脚数 8
封装 DIP-8
长度 9.4 mm
宽度 6.86 mm
高度 3.94 mm
封装 DIP-8
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
