径向引线 Radial Leaded
聚合物 PTC 自恢复保险丝 60V Ih 通孔 径向，圆片式
得捷:
PTC RESET FUSE 60V 1.6A RADIAL
立创商城:
60R160XMR
艾睿:

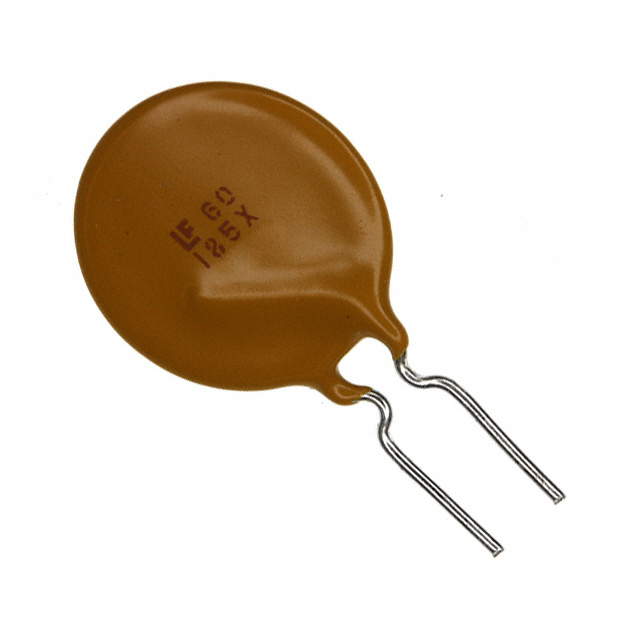

An automatically resetting fuse like this 60R160XMR PTC resettable fuse from Littelfuse is ideal for quickly restoring protected equipment into operation after a fuse burns out. This part has a lead diameter of 0.81 mm. This device has a maximum current rating of 40. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product is 3.1Max mm deep. This product&s;s terminal pitch is 5.1typ mm.
Chip1Stop:

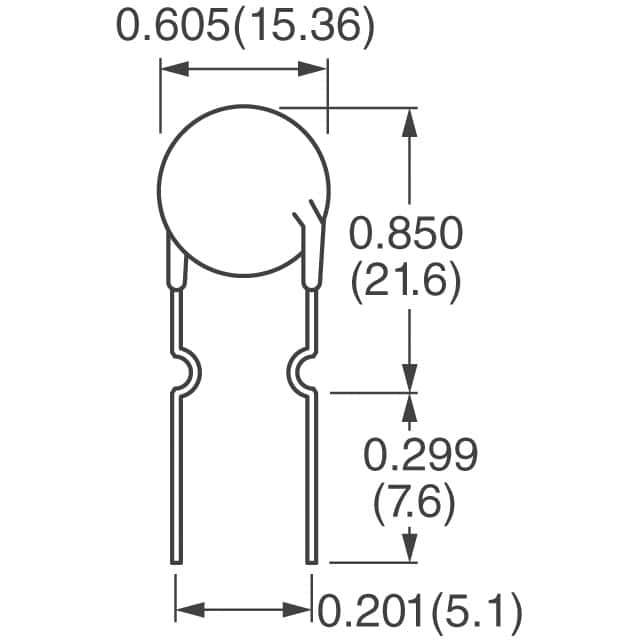

PTC Resettable Fuse 1.6Ahold 3.2Atrip 60VDC 40A 1.9W 11.4s 0.09Ohm Radial 15.36 X 3.1mm Ammo Automotive
儒卓力:
**1.6A resettable PTCs 60V **
跳闸时间 11.4 s
耗散功率 1.9 W
电阻 0.22 Ω
保持电流 1.6 A
跳闸电流 3.2 A
额定电流Max 40 A
保持电流Max 1.6 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 60 VDC
额定电压 60 V
安装方式 Through Hole
引脚数 2
封装 Radial, Disc
长度 21.6 mm

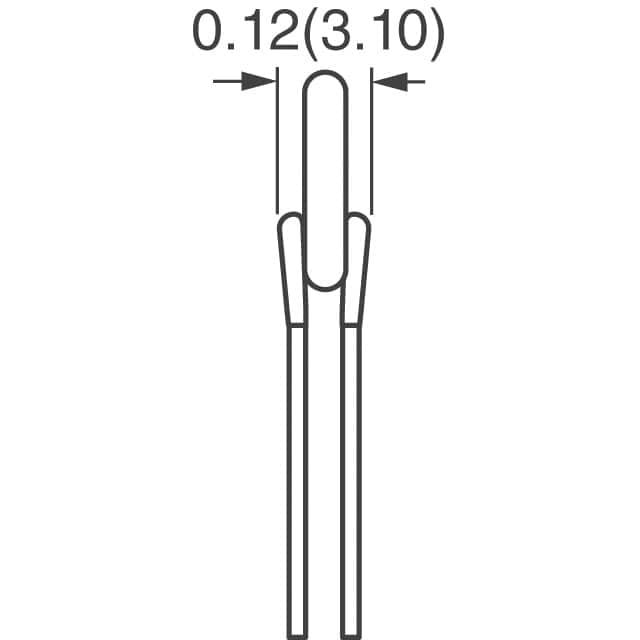

宽度 3.1 mm
高度 3.1 mm
封装 Radial, Disc
厚度 3.05 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
