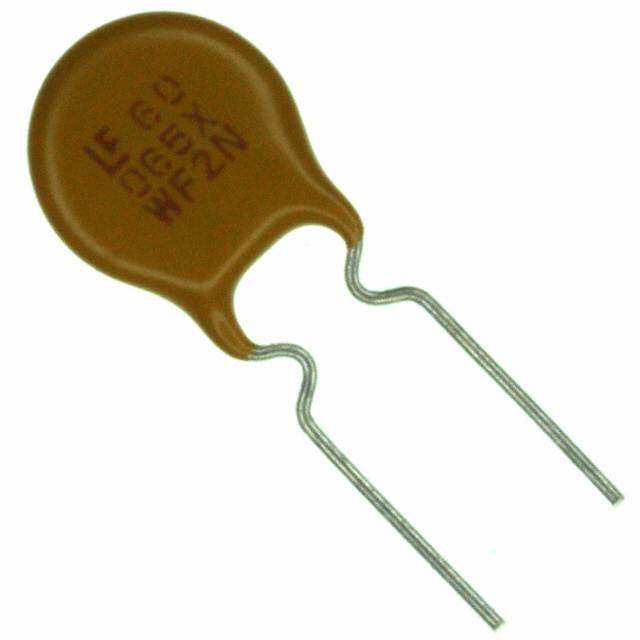

LITTELFUSE 60R065XPR 保险丝, PTC 自复式, 60V, 0.65A, 径向引线
聚合物 PTC 自恢复保险丝 60V Ih 通孔 径向，圆片式
得捷:
PTC RESET FUSE 60V 650MA RADIAL
e络盟:
自复式保险丝PTC, 通孔, 650 mA, 1.3 A, 60 VDC, -40 °C
艾睿:
An automatically resetting fuse like this 60R065XPR PTC resettable fuse from Littelfuse is ideal for quickly restoring protected equipment into operation after a fuse burns out. This device has a maximum current rating of 40. This part has a lead diameter of 0.51 mm. This resettable fuse has an operating temperature range of -40 °C to 85 °C. It has 2 terminals. This product is 3.1Max mm deep. This product&s;s terminal pitch is 5.1typ mm.
Chip1Stop:
PTC Resettable Fuse 0.65Ahold 1.3Atrip 60VDC 40A 0.88W 5.3s 0.31Ohm Radial 9.4 X 3.1mm Ammo Pack
Verical:
PTC Resettable Fuse 0.65Ahold 1.3Atrip 60VDC 40A 0.88W 5.3s 0.31Ohm Radial 9.4 X 3.1mm Ammo Automotive
Newark:
# LITTELFUSE 60R065XPR FUSE, PTC RESETTABLE, 60V, 0.65A, RADIAL
儒卓力:
**650mA resettable PTCs 60V **
工作电压 60 VDC
跳闸时间 5.3 s
额定电流 650 mA
耗散功率 0.88 W
电阻 0.72 Ω
保持电流 650 mA
跳闸电流 1.3 A
额定电流Max 40 A
保持电流Max 650 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 60 VDC
额定电压 60 VDC
安装方式 Through Hole
引脚数 2
封装 Radial, Disc

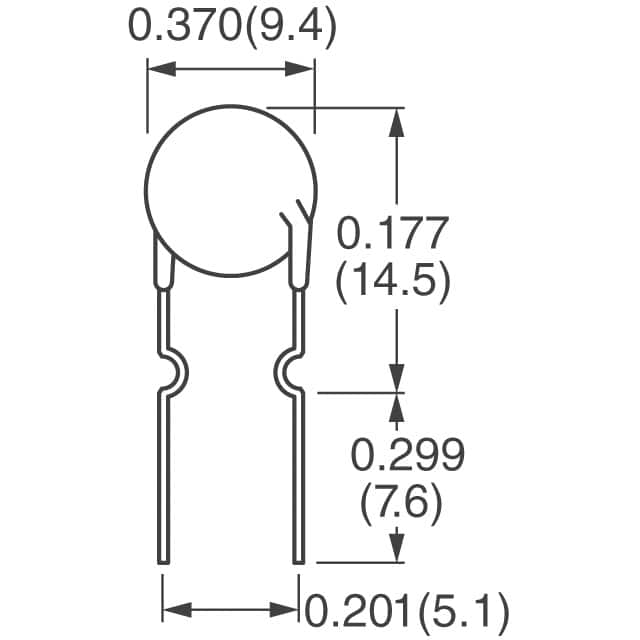

长度 14.5 mm
宽度 9.65 mm
高度 3.1 mm
封装 Radial, Disc
厚度 3.05 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Ammo Pack
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
