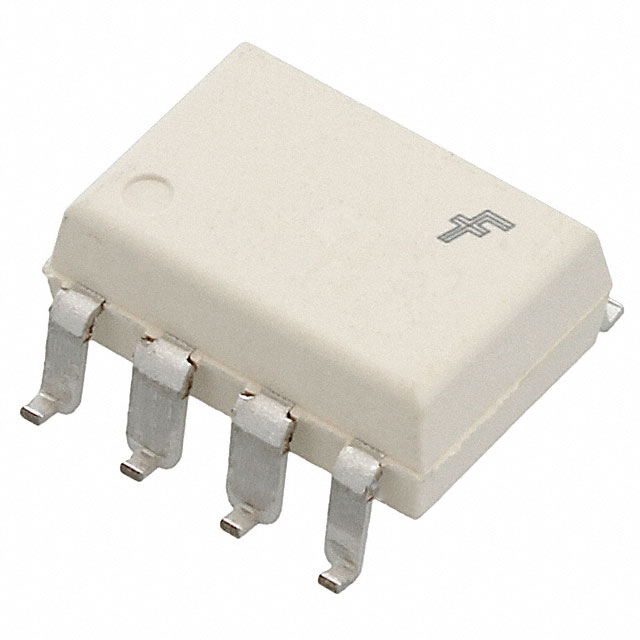

6N139M 系列 单通道 7 V 5000 Vrms 达林顿 光电耦合器 - DIP-8
Description
The 6N138M/9M and HCPL2730M/31M optocouplers consist of an AlGaAs LED optically coupled to a high gain split darlington photodetector.
The split darlington configuration separating the input photodiode and the first stage gain from the output transistor permits lower output saturation voltage and higher speed operation than possible with conventional darlington phototransistor optocoupler. In the dual channel devices, HCPL2730M/HCPL2731M, an integrated emitter-base resistor provides superior stability over temperature.
Features
■ Low current – 0.5mA
■ Superior CTR-2000%
■ Superior CMR-10kV/µs
■ CTR guaranteed 0–70°C
■ U.L. recognized File # E90700, Vol. 2
■ VDE recognition pending
– Ordering option V, e.g., 6N138VM
■ Dual Channel – HCPL2730M, HCPL2731M coming soon
Applications
■ Digital logic ground isolation
■ Telephone ring detector
■ EIA-RS-232C line receiver
■ High common mode noise line receiver
■ µP bus isolation
■ Current loop receiver
通道数 1
正向电压 1.3 V
耗散功率 100 mW
隔离电压 5000 Vrms
正向电流 20 mA
输出电压Max 18 V
输入电流Min 20 mA
正向电压Max 1.7 V
正向电流Max 20 mA
下降时间 25 µs
工作温度Max 100 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
安装方式 Surface Mount
引脚数 8
封装 SMD-8
高度 3.94 mm
封装 SMD-8
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
