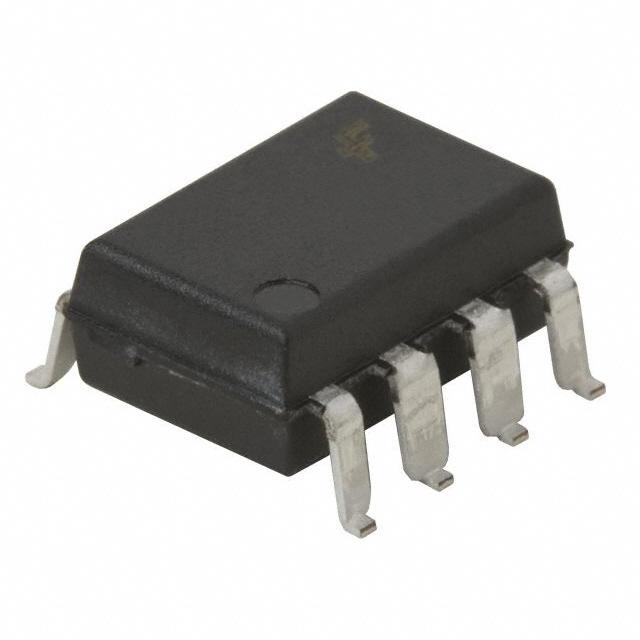

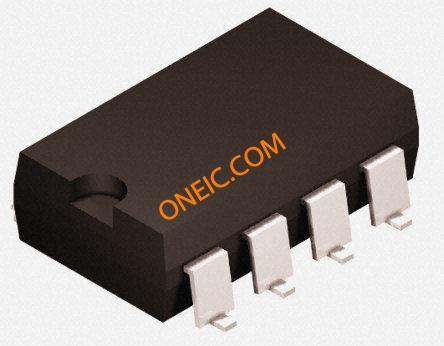

FAIRCHILD SEMICONDUCTOR 6N137SD 光耦合器
Description
The 6N137, HCPL2601, HCPL2611 single-channel and HCPL2630, HCPL2631 dual-channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate with a strobable output. This output features an open collector, thereby permitting wired OR outputs. The coupled
parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5mA will
provide a minimum output sink current of 13mA fan out of 8.
Features
■Veryhigh speed – 10 MBit/s
■Superior CMR – 10 kV/µs
■Double working voltage-480V
■Fan-out of 8 over -40°C to +85°C
■Logic gate output
■Strobable output
■Wired OR-open collector
■U.L. recognized File # E90700
Applications
■Ground loop elimination
■LSTTL to TTL, LSTTL or 5-volt CMOS
■Line receiver, data transmission
■Data multiplexing
■Switching power supplies
■Pulse transformer replacement
■Computer-peripheral interface
上升/下降时间 50ns, 12ns
输入电压DC 1.40 V
输出电压 7.00 V
输出电流 0.05 A
电路数 1
通道数 1
针脚数 8
正向电压 1.4 V
输入电流 15.0 mA
耗散功率 0.1 W
数据速率 10.0 Mbps
上升时间 50 ns
隔离电压 2500 Vrms
正向电流 50 mA
输入电流Min 50 mA
击穿电压 5 V
正向电压Max 1.75 V
正向电流Max 50 mA
下降时间 0.012 µs
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 100 mW
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 8
封装 SMD-8
长度 9.91 mm
宽度 6.86 mm
高度 3.94 mm
封装 SMD-8
工作温度 -40℃ ~ 85℃
产品生命周期 Not Recommended for New Designs
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
