高速晶体管光电耦合器 HIGH SPEED TRANSISTOR OPTOCOUPLERS
Description
The HCPL-4502/HCPL-2503, 6N135/6 and HCPL-2530/HCPL-2531 optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor.
A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototransistor optocouplers by reducing the base-collector capacitance of the input transistor.
An internal noise shield provides superior common mode rejection of 10kV/µs. An improved package allows superior insulation permitting a 480 V working voltage compared to industry standard of 220 V.
Features
■ High speed-1 MBit/s
■ Superior CMR-10 kV/µs
■ Dual-Channel HCPL-2530/HCPL-2531
■ Double working voltage-480V RMS
■ CTR guaranteed 0-70°C
■ U.L. recognized File # E90700
Applications
■ Line receivers
■ Pulse transformer replacement
■ Output interface to CMOS-LSTTL-TTL
■ Wide bandwidth analog coupling
输入电压DC 1.45 V
输出电流 8 mA
通道数 1
正向电压 1.45 V
耗散功率 100 mW
数据速率 1.00 Mbps
隔离电压 2500 Vrms
正向电流 25 mA
输出电压Max 20 V
下降时间 1.5 µs
工作温度Max 70 ℃
工作温度Min 0 ℃

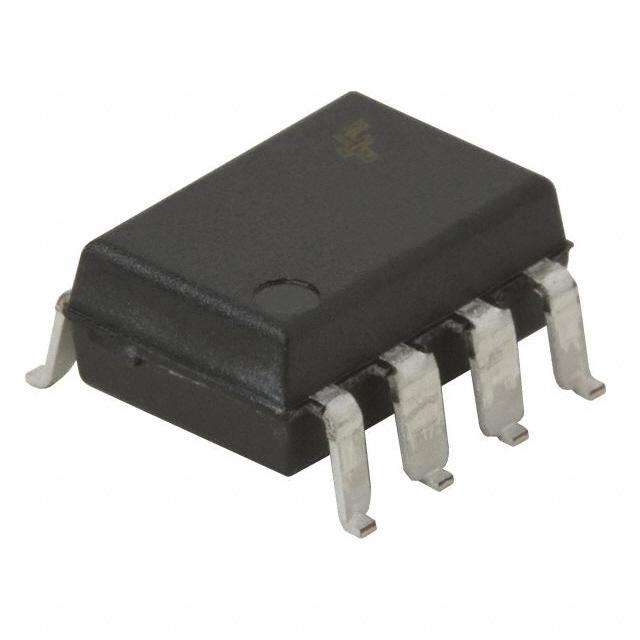

安装方式 Surface Mount
封装 SMD-DIP-8
长度 9.91 mm
宽度 6.86 mm
高度 5.08 mm
封装 SMD-DIP-8
工作温度 -55℃ ~ 100℃
产品生命周期 Unknown
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
