ALPHA WIRE 6387 SL005 Multipair Unshielded Cable, 9, 24AWG, 0.23mm , 7 x 0.2mm, 100Ft, 30.5m

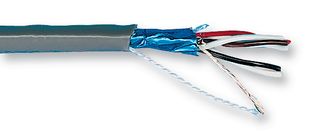

The is a 100ft 9-pair overall foil-shield Communication and Control Cable with stranded tinned copper conductors with polyethylene insulation. The cable has aluminium/polyester foil shield with 25% minimum overlap and foil facing in-ward stranded tinned copper drain wire equal in size to conductor.
- .
- 95lb Maximum pull tension
- .
- 60R Characteristic impedance
- .
- -20 to 80°C Temperature range
线规 24 AWG
额定电压DC 300 V
屏蔽 Yes
芯数 18
额定电压 300 V
长度 30.5 m
颜色 Slate
绝缘材质 Polyethylene
工作温度 -20℃ ~ 80℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Coil
制造应用 Security, Sensing & Instrumentation, Automation & Process Control, Communications & Networking, Industrial, Computers & Computer Peripherals, Audio
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
