65402 SL001

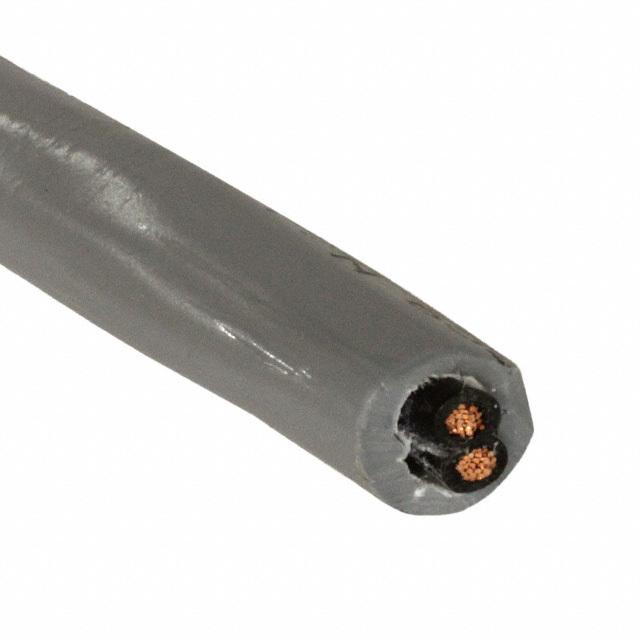

ALPHA WIRE 65402 SL001 Multicore Unscreened Cable, Xtra Guard® Flex Control, Slate, 2 Core, 14AWG, 2.08mm², 1000Ft

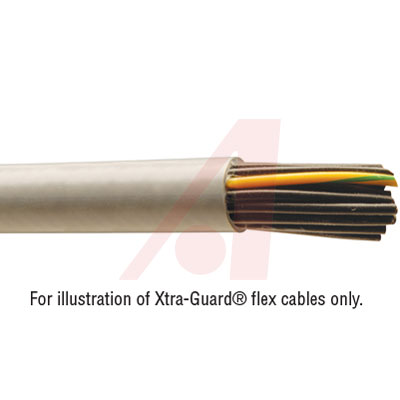

The is a 2-core Unshielded Cable with bare copper conductor and a lubricated PVC insulator. This multi-core Xtra-Guard® standard light-to-moderate flex control cable comes with an oil-resistant slate PVC jacket. The long-lasting flex cable designed to provide excellent performance in high-flex, high torsion and continuous-flex applications such as motion control.

.

Rounded geometry helps insure a liquid-tight installation per IP67 or NEMA 6

.

64lbs Maximum pull tension

.

0.17µH/ft Nominal inductance

.

2.6R/1000ft at 20°C Nominal conductor DC resistance DCR
