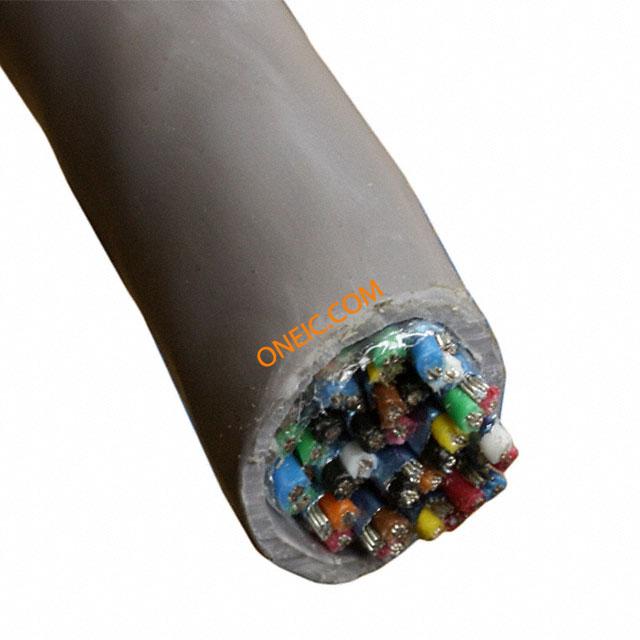

ALPHA WIRE 6020C SL005 Multipair Screened Cable, Communication, Slate, 19 Pair, 22AWG, 0.35mm², 100Ft, 30.5m
The is a 100ft 20-pair foil-shield Communication and Control Cable with stranded tinned copper conductors and polypropylene insulation. The cable has individual aluminium/polyester foil shield with 25% minimum overlap, foil facing in-ward stranded tinned copper drain wire.
- .
- 313lb Maximum pull tension
- .
- 60R Characteristic impedance
- .
- 0.18µH/ft Inductance
- .
- -20 to 75°C Temperature range
线规 22 AWG
额定电压DC 300 V
易燃性等级 CSA FT-4
屏蔽 Yes
芯数 38
额定电压 300 V
长度 30.5 m
颜色 Slate
工作温度 -20℃ ~ 60℃
导体材质 Tinned Copper
外壳材质 PVC
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 通信，控制, Communications & Networking, Audio, Automation & Process Control, Security, Computers & Computer Peripherals, Industrial, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
