AMPHENOL FCI 65474-004LF 跳接器, 2路, 2.54MM

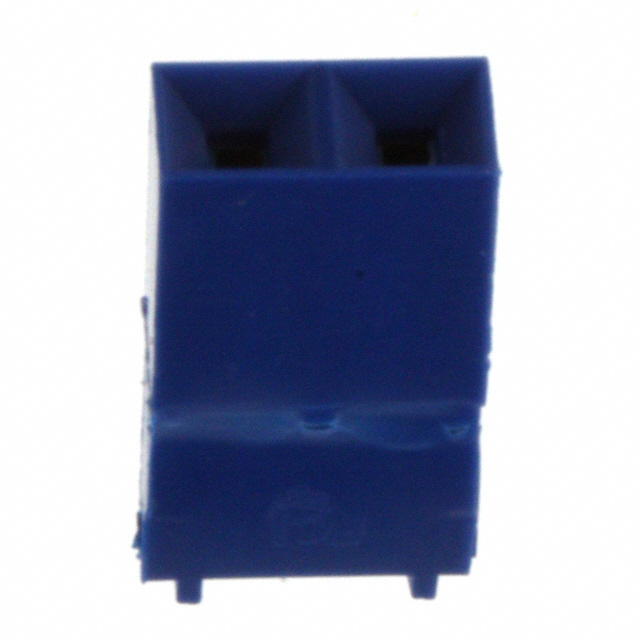

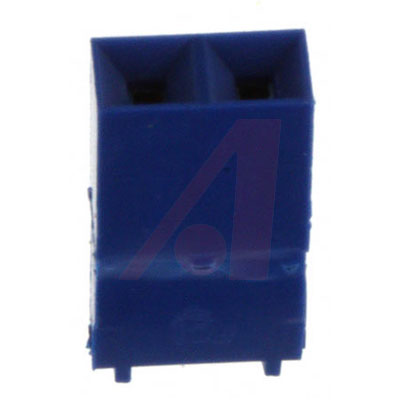

**Mini-Jump Shunts**
This range of Mini-Jump Shunts are available with Gold or Tin plated sockets. The Jumper sockets are designed to fit 0.64 mm square posts on a 2.54 mm pitch.
贸泽:
Headers & Wire Housings MINI JUMP 2POS 100"
e络盟:
AMPHENOL FCI 65474-004LF 跳接器, 2路, 2.54MM
艾睿:
Conn Mini Jumper F 2 POS 2.54mm ST Bag
Allied Electronics:
Jumper; 2Cnts; 1Row; Mini-Jump; 2.54mmCenterline; Blue; GoldFlashPlating
Chip1Stop:
Conn Mini Jumper F 2 POS 2.54mm ST Bag
触点数 2
额定电流 2.5 A
绝缘电阻 50000 MΩ
排数 1
针脚数 2
拔插次数 50
额定电流Max 2.5A/触头
工作温度Max 120 ℃
工作温度Min -55 ℃
额定电压Max 800 VAC
额定电压 800 V
接触电阻Max 20 mΩ
长度 5.21 mm
宽度 2.54 mm
高度 9.78 mm
外壳颜色 Blue
颜色 Blue
触点材质 Copper Alloy
工作温度 -55℃ ~ 120℃
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
