超快软恢复二极管, 60 A FRED PTTM Ultrafast Soft Recovery Diode, 60 A FRED PtTM
300 V Series are the state of the art ultrafast recovery rectifiers designed with optimized performance of forward voltage drop and ultrafast recovery time.
The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics. These devices are intended for use in the output rectification stage of SMPS, UPS, DC-to-DC converters as well as freewheeling diodes in low voltage inverters and chopper motor drives. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.
**Features:**
* Ultrafast Recovery Time
* Low Forward Voltage Drop
* Low Leakage Current
* 175°C Operating Junction Temperature
* Lead Pb-Free PbF Suffix
* Designed and Qualified for Industrial Level
额定电压DC 400 V
额定电流 60.0 A
输出电流 ≤60.0 A
正向电压 1.3 V
极性 Standard
热阻 0.7K/W RθJC
反向恢复时间 85 ns
正向电流 60 A
正向电压Max 1.25V @60A
工作温度Max 175 ℃
工作温度Min -55 ℃
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 2

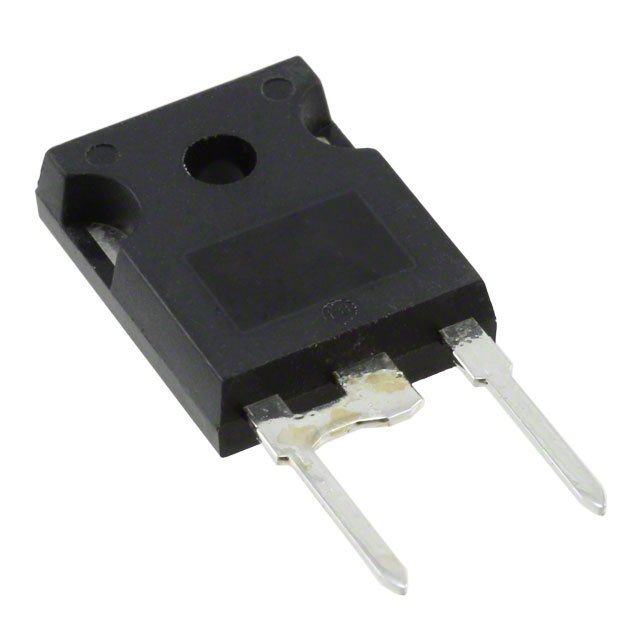

封装 TO-247-2
长度 15.87 mm
高度 20.7 mm
封装 TO-247-2
工作温度 -55℃ ~ 175℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
60EPU04 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
VS-60EPU04PBF 威世 | 类似代替 | 60EPU04和VS-60EPU04PBF的区别 |
