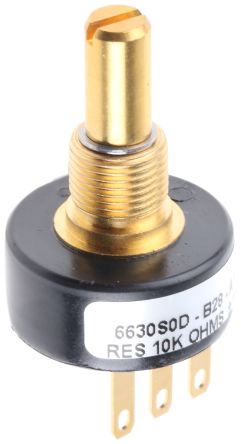

BOURNS 6630S0D-B28-A103 旋转电位器, 6630S系列, 10 kohm, 线性, 1 转, 1 W, 面板
7/8in 6630 系列
薄型
基本无限的分辨率
极佳的旋转寿命
高质量，结构坚固
推荐用于 HMI 应用
机械制动器标示在部件号中 6630S 之后，1 表示已安装 - 0 未安装
防旋转接线片标示在部件号中表示机械制动器是否安装的数字之后，A 表示已安装 - D 未安装
欧时:
Bourns 6630 系列 10kΩ ±15% 旋转 电位器 6630S0D-B28-A103, 1W, 6.35 mm 直径轴, ±500ppm/°C, 面板安装
e络盟:
# BOURNS 6630S0D-B28-A103 旋转电位器, 6630S系列, 10 kohm, 线性, 1 转, 1 W, 面板
艾睿:
Place this 6630S0D-B28-A103 potentiometer from Bourns at critical points in a circuit and adjust the resistance for optimal functionality. This dependable part has a power rating of 1 W. This product has a resistance value of 10K Ohm. Its temperature coefficient is ±500 ppm/°C. This product is 41.61 mm tall with a diameter of 22.23 mm. It has a tolerance of 15%. This part has an operating temperature of -40 to 125 °C. The 6630S0D-B28-A103 part has a solder lug termination style.
Allied Electronics:
Pot, Precision, Rest 10K Ohm, 1W, Shaft Dia. 0.25In Slotted End
安富利:
Res POT 10K Ohm 15% 1W 1Elec/1MechTurn 6.34mm 22.23 X 41.61mm Solder Lug Panel Mount
TME:
Potentiometer: shaft; single turn; 10kΩ; 1W; ±15%; 6.35mm; plastic
Verical:
Res POT 10K Ohm 15% 1W 1Elec/1MechTurns 6.34mm 22.23 X 41.61mm Solder Lug Panel Mount
Newark:
# BOURNS 6630S0D-B28-A103 Rotary Potentiometer, 10 kohm, 1 W, ± 15%, 6630S Series, 1 Turns, Linear
MASTER:
Res POT 10K Ohm 15% 1W 1Elec/1MechTurns 6.34mm 22.23 X 41.61mm Solder Lug Panel Mount
Electro Sonic:
Res POT 10K Ohm 15% 1W 1Elec/1MechTurns 6.34mm 22.23 X 41.61mm Solder Lug Panel Mount
