Cap Aluminum Polymer 560uF 6.3VDC 20% 6.3 X 9mm Radial 2.5mm 0.007Ω 5600mA 5000H 105℃ T/R
铝聚合物器 径向,Can 7 毫欧 105°C 时为 5000 小时
得捷:
CAP ALUM POLY 560UF 20% 6.3V T/H
立创商城:
560uF ±20% 6.3V
艾睿:

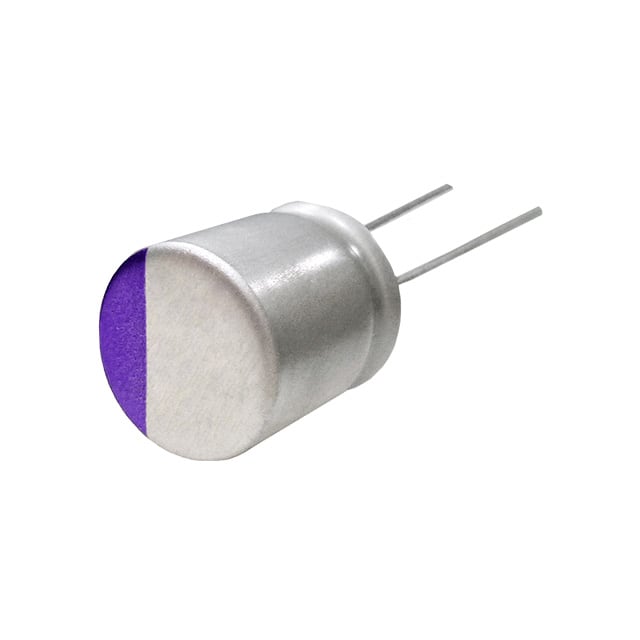

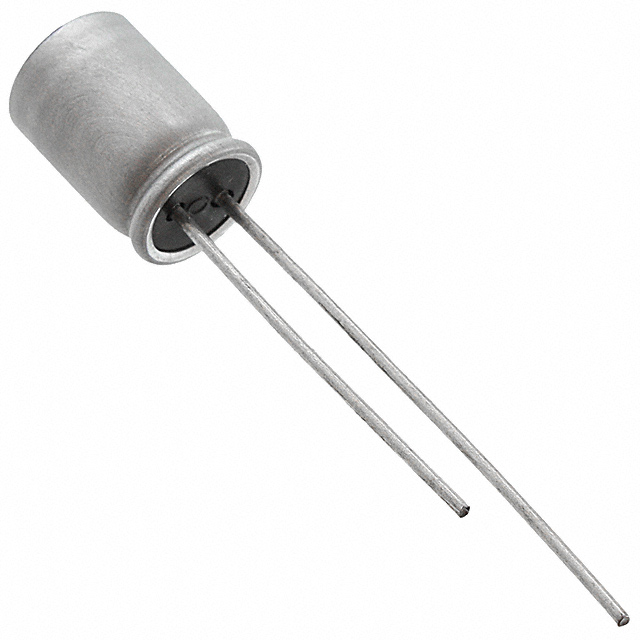

Using Panasonic&s;s 6SEPC560MW+TSS conductive polymer aluminum solid capacitor, easily take care of varying levels of voltage entering your circuit. Users like its long lead wire form. It can withstand a voltage of 6.3 VDC. It has 2 terminals. This part has a lead diameter of 0.6 mm. This product&s;s terminal pitch is 2.5 mm. Its leakage current is 705@2Min μA. This product is 9Max mm tall with a diameter of 6.3 mm. The 6SEPC560MW+TSS conductive polymer aluminum solid capacitor has a radial termination style. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C.
Verical:
Cap Aluminum Polymer 560uF 6.3VDC 20% 6.3 X 9mm Radial 2.5mm 0.007 Ohm 5600mA 5000h 105C T/R
电容 560 µF
等效串联电阻ESR 7 mΩ
容差 ±20 %
纹波电流 5600 mA
纹波电流高频 280mA @120Hz
纹波电流低频 5.6A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 2.5 mm
高度 9 mm
直径 6.3 mm
封装 Radial, CAN
引脚间距 2.5 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
寿命(小时) 5000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
