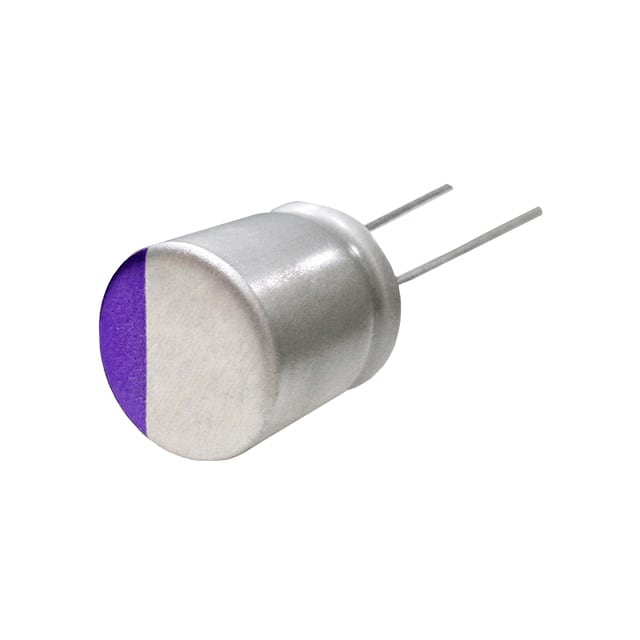

6SEQP330M

PANASONIC ELECTRONIC COMPONENTS  6SEQP330M  铝电解电容, SEQP系列, 330 µF, 径向引线, 0.025 ohm, 6.3 V, 1000 hours @ 125°C

330 µF 6.3 V 铝聚合物器 径向，Can 25 毫欧 125°C 时为 1000 小时

立创商城:
330uF ±20% 6.3V

贸泽:
Aluminum Organic Polymer Capacitors 6.3volt 330uF 25mohm 10x8mm OSCON

e络盟:
电容, 铝 聚合物, 330UF, 6.3V, 径向

艾睿:
Panasonic&s;s 6SEQP330M conductive polymer aluminum solid capacitor can easily support changes to the input load into an integrated circuit. It can withstand a voltage of 6.3 VDC. Users like its long lead wire form. It has 2 terminals. This part has a lead diameter of 0.5 mm. This product&s;s terminal pitch is 5 mm. This product is 8Max mm tall with a diameter of 10 mm. Its leakage current is 416@2Min μA. The 6SEQP330M conductive polymer aluminum solid capacitor has a radial termination style. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has an operating temperature range of -55 °C to 125 °C.

安富利:
Cap Aluminum 330uF 6.3V 20% 10 X 8mm Radial Aluminum Cylindrical Can 5mm 0.025 Ohm 1170mA 1000hr 125°C Bulk

Verical:
Cap Aluminum Polymer 330uF 6.3VDC 20% 10 X 8mm Radial 5mm 0.025 Ohm 1170mA 1000h 125C Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  6SEQP330M  CAP, ALU POLYMER, 330UF, 6.3V, RADIAL

MASTER:
Cap Aluminum Polymer 330uF 6.3VDC 20% 10 X 8mm Radial 5mm 0.025 Ohm 1170mA 1000h 125°C Bulk
