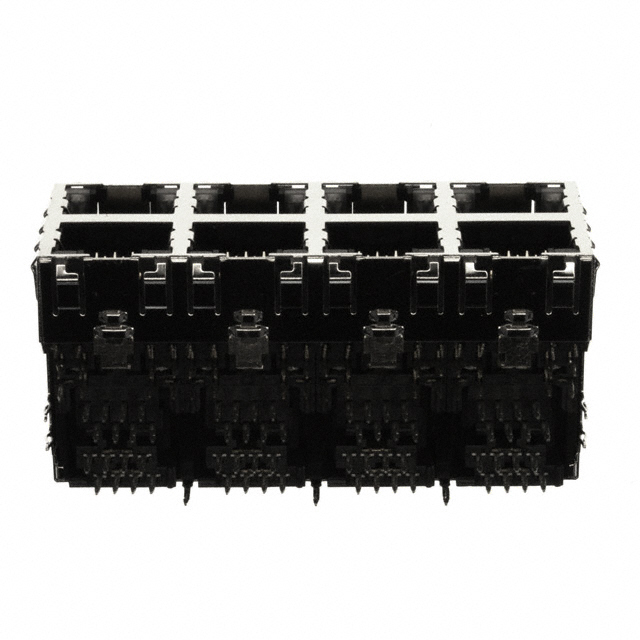

8 位置 2x4 直角 通孔 带LED 堆叠 RJ45 模块化插头
2X4 OFFSET STK MJ,SHLD,G/Y LED&GND;
Product Highlights
Connector
Stacked Port Configuration
2 x 4 Jack Configuration
Jack Type = RJ45
8 Positions
得捷:
CONN MOD JACK 8P8C R/A SHIELDED
艾睿:
Looking for a way to connect a phone to a device? This rj-45 6368062-4 telephone and telecom connector from TE Connectivity will get you there. This F connector&s;s 64 contacts that are made out of phosphor bronze and plated with gold over nickel. This connector has 8 ports. Its pitch is 2.03 mm. It has a female type gender. It has a right angle body orientation. It has a maximum voltage rating of 150 VAC. This device has a maximum current rating of 1.5 A/contact. The component will be shipped in tray format. It uses the solder termination method. This product is 59.82 mm long, 22.99 mm tall and 31.06 mm deep. 6368062-4 is housed in black polybutylene terephthalate. This part has an operating temperature of -40 to 80 °C.
安富利:
Conn RJ-45 F 64 POS 2.03mm Solder RA Thru-Hole 96 Terminal 8 Port Tray Cat 5
MASTER:
STACKED MODULAR JACK ASSEMBLY, 2x4 OFFSET, WITH LEDS, 8 POSN, RJ45
Powell:
PCB Mounted Jacks - Single Port, Multi-port and Stacked
触点数 64
触点电镀 Gold, Tin over Nickel
排数 2
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 8
屏蔽 Yes
额定电流Max 1.5A/触头
工作温度Max 80 ℃
工作温度Min -40 ℃
额定电压Max 150 VAC
安装方式 Through Hole
高度 22.99 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 85℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Tray
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
