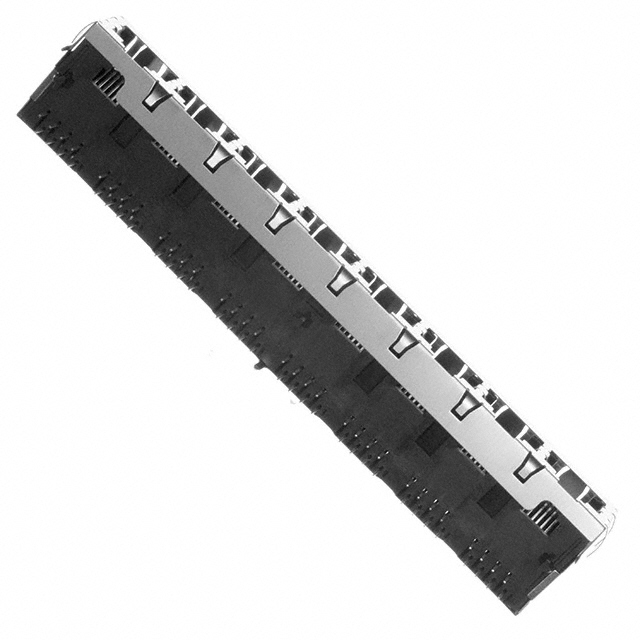

6339169-3

8位置 8触点 1x8 直角 通孔 堆叠 RJ45 模块化插孔

ASSY,SHLD,1X8,MJ,WAVE PNL

Product Highlights

Jack

Multiple Port Configuration

1 x 8 Jack Configuration

Jack Type = RJ45

Number of Positions = 8

得捷:
CONN MOD JACK 8P8C R/A SHIELDED

立创商城:
6339169-3

贸泽:
模块式连接器/以太网连接器 1X8 8/8 R/A

e络盟:
模块连接器, RJ45 插座, 1 x 8, 排路, 8P8C, Cat5, 通孔安装

艾睿:
Never drop a call or phone connection using this rj-45 6339169-3 telephone and telecom connector from TE Connectivity. This F connector&s;s 64 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a maximum voltage rating of 150 VAC. This connector has 8 ports. It has a right angle body orientation. It has a female type gender. Its pitch is 2.54 mm. This device has a maximum current rating of 1.5 A/contact. The item will be shipped in tray orientation. 6339169-3 is housed in black polychlorinated terphenyl. It uses the solder termination method. This product is 114.95 mm long, 15.01 mm tall and 21.42 mm deep. This part has an operating temperature of -40 to 80 °C.

Allied Electronics:
Modular Jack, RJ45, Assembly, Multi-Port, 1 x 8, 8 Position, Shielded

Jameco:
Connector RJ-45 Female 64 Position 2.54mm Solder Right Angle Thru-Hole 64 Terminal 8 Port Tray Cat 5

安富利:
Conn RJ-45 F 64 POS 2.54mm Solder RA Thru-Hole 64 Terminal 8 Port Tray Cat 5

Chip1Stop:
Conn RJ-45 F 64 POS 2.54mm Solder RA Thru-Hole 64 Terminal 8 Port Tray Cat 5

Verical:
Conn RJ-45 F 64 POS 2.54mm Solder RA Thru-Hole 64 Terminal 8 Port Cat 5 Box/Tray

Newark:
# AMP - TE CONNECTIVITY  6339169-3  Modular Connector, Cat5, RJ45, Jack, 8 Contacts, 8 Positions, 8 Ports

MASTER:
ASSEMBLY,MULTI-PORT,1X8, 8 POSITION,SHIELDED, WAVE PANEL GROUND

Powell:
PCB Mounted Jacks - Single Port, Multi-port and Stacked

Online Components:
ASSY,SHLD,1X8,MJ,WAVE PNL

Electro Sonic:
ASSY,SHLD,1X8,MJ,WAVE PNL

Win Source:
CONN MOD JACK 8P8C R/A SHIELDED / Jack Modular Connector 8p8c RJ45, Ethernet 90° Angle Right Shielded, EMI Finger Cat5
