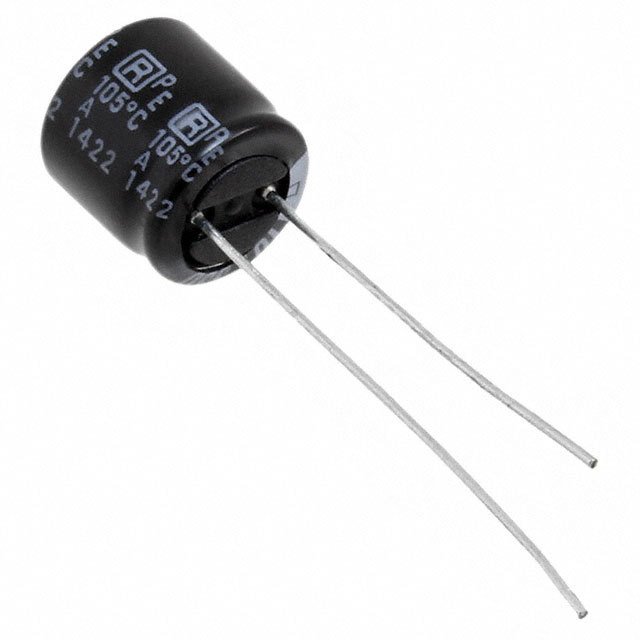

RUBYCON 6.3ML470MEFC8X7.5 铝电解电容, 微型, ML系列, 470 µF, ± 20%, 6.3 V, 8 mm, 径向引线
The ML series capacitors are radial leaded, polarized miniature aluminium electrolytic capacitors. The capacitance value ranges from 1µF to 1000µF. ML series capacitors have 5mm to 9mm height and ideally suited for multiple applications where height is a key consideration.
- .
- Rated voltage range from 6.3VDC to 50VDC
- .
- ±20% tolerance
- .
- Endurance is 3000h to 5000h at 85°C
- .
- Operating temperature range from -40°C to 105°C
- .
- Capacitor size varies from 4mm x 5mm to 10mm x 9mm D x L
额定电压DC 6.30 V
电容 470 µF
容差 ±20 %
产品系列 ML
纹波电流 190mA @120Hz
纹波电流高频 190mA @120Hz
纹波电流低频 228mA @10kHz
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 6.3 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 3.5 mm
高度 7.5 mm
直径 8.00 mm
封装 Radial, CAN
引脚间距 3.5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Each
最小包装 2000
寿命（小时） 5000h @105℃
制造应用 通用, 电源管理, 便携式器材, Consumer Electronics, Portable Devices, Industrial, Power Management, 消费电子产品, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
