板对板与夹层连接器 0.8FH,R05H.5,120 30/SN,TU
0.8FH,R05H.5,120,30/Sn,TU
得捷:
CONN RCPT 120POS SMD GOLD
贸泽:
板对板与夹层连接器 0.8FH,R05H.5,120 30/SN,TU
艾睿:

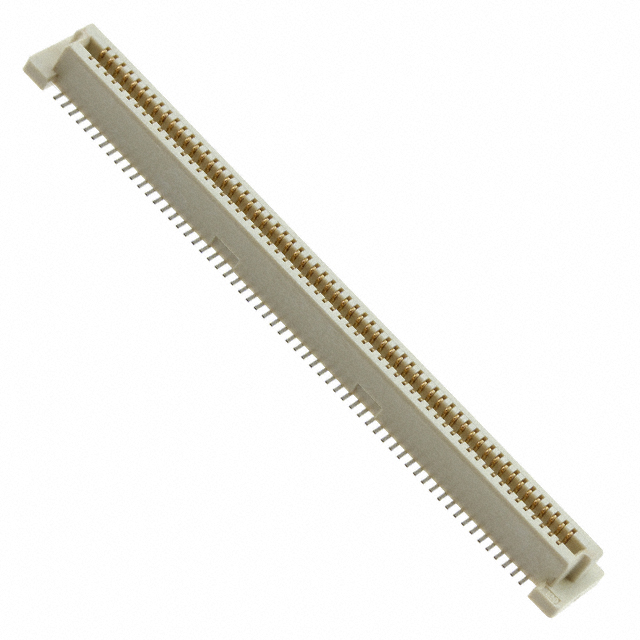

As an added safety precaution, the fine pitch connector 6123000-5 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This RCP connector&s;s 120 contacts that are made out of beryllium copper and plated with gold. It has a straight body orientation. It has a receptacle type gender. It has a maximum voltage rating of 100 VAC. Its pitch is 0.8 mm. This is a 2-row connector. This device has a maximum current rating of 0.5 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This connector has an operating temperature of -40 to 85 °C. 6123000-5 is housed in natural liquid crystal polymer. It uses the solder termination method. This product is 53.8 mm long, 3.75 mm tall and 6 mm deep.
安富利:
Conn Fine Pitch Connector RCP 120 POS 0.8mm Solder ST SMD Tube
Verical:
Conn Fine Pitch Connector RCP 120 POS 0.8mm Solder ST SMD Box/Tube
MASTER:
REC ASSY FOR FH 0.8BTB CONNECTOR 5H 0.5 BOSS LENGTH 0.76um GOLD
Powell:
.4mm, .5mm, .6mm, .8mm, 1mm, Fine Pitch, Surface Mount, Stacking Bd-to-Bd Connectors
Electro Sonic:
0.8FH,R05H.5,120,30/Sn,TU
触点数 120
触点电镀 Gold, Tin over Nickel
绝缘电阻 500 MΩ
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 120
额定电流Max 0.5A/触头
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 100 VAC
接触电阻Max 30 mΩ
安装方式 Surface Mount
高度 3.75 mm
外壳颜色 Natural
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Signal
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
6123000-5 TE Connectivity 泰科 | 当前型号 | 当前型号 |
61082-121400LF 法马通 | 功能相似 | 6123000-5和61082-121400LF的区别 |
