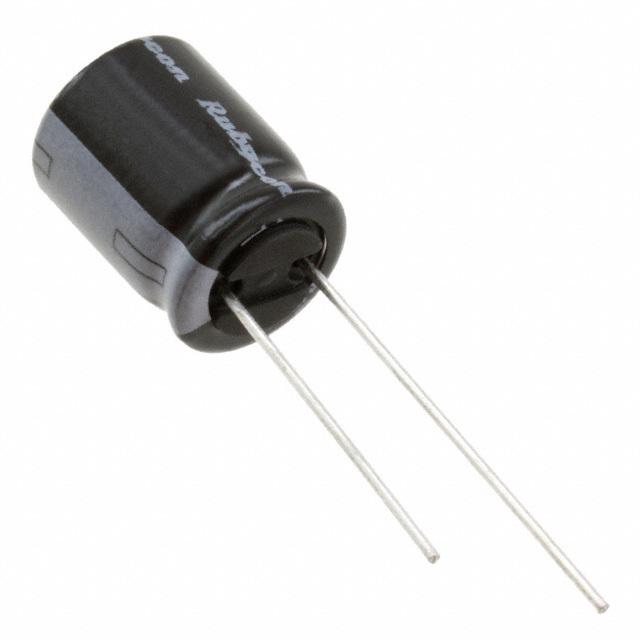

RUBYCON 63YXF100MEFC10X12.5 铝电解电容, 微型, YXF系列, 100 µF, ± 20%, 63 V, 10 mm, 径向引线
The YXF series are miniaturized, long life, low impedance and radial leaded aluminium electrolytic capacitors. These capacitors are used in audio, video and general purpose electronic circuits.
- .
- Capacitance value ranges from 1µF to 15000µF
- .
- ±20% tolerance
- .
- Rated voltage of 6.3V to 100VDC
- .
- Operating temperature ranges from -40°C to +105°C
- .
- High ripple current
- .
- Endurance at 105°C is 4000hours to 10000hours depending on case size diameter
- .
- Capacitor size varies from 5 × 11mm to 18 × 35.5mm
额定电压DC 63 V
电容 100 µF
容差 ±20 %
纹波电流 300 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 63 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 5 mm
高度 12.5 mm
直径 10.0 mm
封装 Radial, CAN
引脚间距 5 mm
介质材料 Aluminum Electrolytic
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Each
最小包装 1000
寿命（小时） 7000h @105℃
制造应用 Power Management, 工业, Industrial, 便携式器材, Industrial, Consumer Electronics, Portable Devices, Power Man, Consumer Electronics, Portable Devices, 电源管理, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
