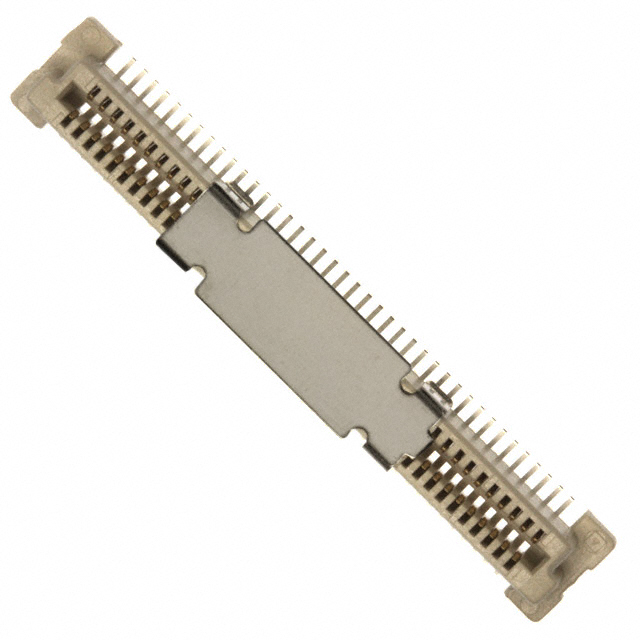

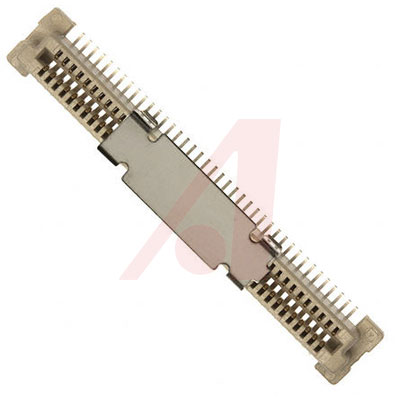

Conn Fine Pitch Connector RCP 80POS 0.8mm Solder ST SMD T/R
**BERGSTAK® Mezzanine Connectors**
The BERGSTAK® Series from FCI offers versatile, high density parallel board to board connector system offering 12 PCB stack heights in nine sizes up to two hundred positions.
贸泽:
Board to Board & Mezzanine Connectors 80P RECPT W/POLARIZATION
Allied Electronics:
Bergstak« : 80 Positions; Dual Row; BTBVertical Receptacle tape & Reel
Chip1Stop:
Conn Fine Pitch Connector RCP 80 POS 0.8mm Solder ST SMD T/R
Verical:
Conn Fine Pitch Connector RCP 80 POS 0.8mm Solder ST Top Entry SMD T/R
触点数 80
极性 Female
触点电镀 Gold
额定电流 800 mA
排数 2
易燃性等级 UL 94 V-0
针脚数 80
额定电流Max 0.8A/触头
额定电压 100 VAC
接触电阻Max 50 mΩ
安装方式 Surface Mount
引脚间距 800 µm
长度 37.8 mm
宽度 6 mm
高度 3.7 mm
引脚间距 800 µm
触点材质 Beryllium Copper
工作温度 -40℃ ~ 85℃
外壳材质 Plastic
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
