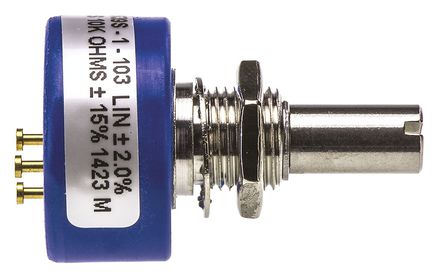

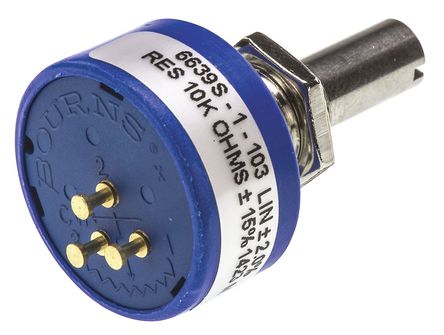

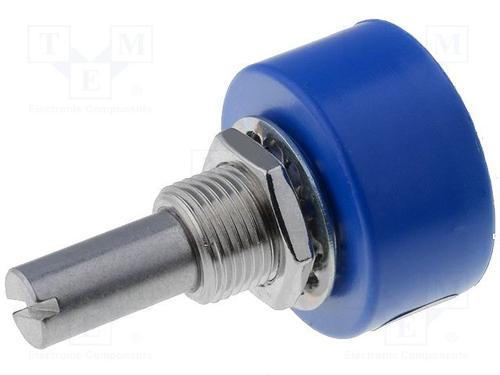

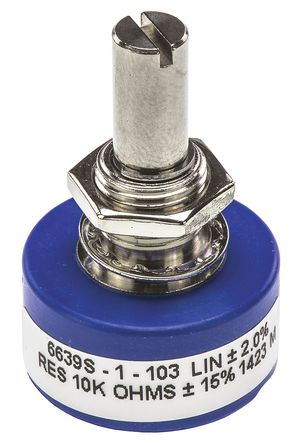

BOURNS 6639S-1-103 旋转电位器, 精准, 6639S系列, 10 kohm, 线性, 1 转, 1 W, 面板
22mm 安装 6639 系列
精密衬套安装连续旋转电位计
占据面板后极小空间
极佳的旋转寿命 - 高质量坚固结构
电气角 340° 有效
导电塑料元件
欧时:
Bourns 6639 系列 连续 转 10kΩ ±15% 旋转 电位器 6639S-1-103, 1W, 6.35 mm 直径轴, ±500ppm/°C
艾睿:
Are you looking for a way to calibrate resistance and optimize your circuit? Then this 6639S-1-103 potentiometer from Bourns is your solution! This product has a resistance value of 10K Ohm. This dependable part has a power rating of 1 W. Its temperature coefficient is ±500 ppm/°C. It has a tolerance of 15%. The 6639S-1-103 part has a turret termination style. This product is 36.65 mm tall with a diameter of 22.23 mm. This part has an operating temperature of -40 to 125 °C.
Allied Electronics:
Pot; Conductive Plastic; 10 Kilohms; Panel; 1 Turns; 1 W; Linear; Dia-Shaft 0.2497"
安富利:
Res POT 10K Ohm 15% 1W 1Elec/1MechTurn 6.34mm 22.23 X 36.65mm Turret Panel Mount
TME:
Potentiometer: shaft; single turn; 10kΩ; 1W; ±15%; 6.35mm; linear
Verical:
Res POT 10K Ohm 15% 1W 1Elec/1MechTurn 6.34mm 22.23 X 36.65mm Turret Panel Mount
Newark:
# BOURNS 6639S-1-103 Rotary Potentiometer, Precision, 10 kohm, 1 W, ± 15%, 6639S Series, 1 Turns, Linear
MASTER:
Res POT 10K Ohm 15% 1W 1Elec/1MechTurn 6.34mm 22.23 X 36.65mm Turret Panel Mount
Electro Sonic:
Res POT 10K Ohm 15% 1W 1Elec/1MechTurn 6.34mm 22.23 X 36.65mm Turret Panel Mount
额定电压AC 300 V
绝缘电阻 500 MΩ
容差 ±15 %
额定功率 1 W
电阻 10 kΩ
阻值偏差 ±15 %
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 300 VAC
安装方式 Solder Lug, Panel
封装 Round - 0.875" Dia x 0.443" H 22.23mm x 11.25mm
长度 0.45 in
高度 36.65 mm
直径 22.2 mm
封装 Round - 0.875" Dia x 0.443" H 22.23mm x 11.25mm
重量 24 g
工作温度 -40℃ ~ 125℃
外壳材质 Plastic
温度系数 ±500 ppm/℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, 消费电子产品, 便携式器材, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
6639S-1-103 Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
6639S-301-103 伯恩斯 | 完全替代 | 6639S-1-103和6639S-301-103的区别 |
6539S-1-103 伯恩斯 | 功能相似 | 6639S-1-103和6539S-1-103的区别 |
