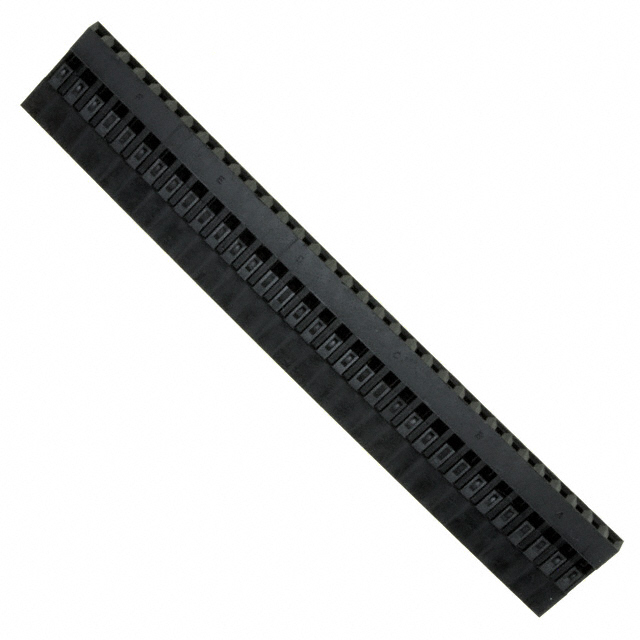

Conn Housing RCP 33POS 2.54mm Crimp ST Cable Mount Bag
**Overview:**
The innovative PV® crimp-to-wire system connects discrete wire to printed circuit boards. High reliability dual-metal receptacle terminals plug to industry standard 0.025 inch 0.635mm square posts. A variety of containment, protection and guidance options are available for both sides of the connector interface.
**Features:**
* Unique dual-metal PV® receptacle contact maintains contact pressure through 1000 mating cycles
* A beryllium copper spring provides high normal force at the mating interface, while the brass contact body produces a reliable, gas-tight crimp termination
* Choice of three different spring pressures allows the user to customize insertion and withdrawal forces to individual application requirements
* Shrouded header side walls engage with the sides of the MINI-LATCH housing to provide additional retention
* MINI-LATCH housing firmly retains PV® wire contactsAvailable in single or double row configurations
* Keyed MINI-LATCH housings and header keyways provide polarization to prevent mis-mating
* Two wall header design provides mechanical benefits plus economy
