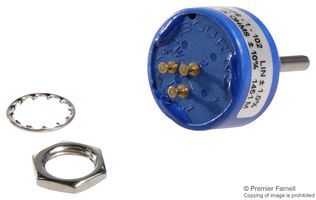

BOURNS 6637S-1-102 旋转电位器, 精准, 6637S系列, 1 kohm, 线性, 1 转, 1 W, 套管
1-Turn, 1 watt — 7⁄8" dia.
**Specifications**
* Operating Temperature Range: –40°C to +125°C
* Temperature Coefficient: ±500 ppm/°C Max.
* Resistance Tolerance: ±10%
* Independent Linearity: ±1%
* Rotational Life No Load: 10,000,000 Shaft Revolutions
**Features**
* Bushing Mount
* Excellent Resolution
* High Rotational Life
艾睿:
Potentiometer, Precision, 22mm, 1-Turn, 1 Kilohms, 10%
Allied Electronics:
Potentiometer, Precision, 22mm, 1-Turn, 1 Kilohms, 10%
安富利:
Res POT 1K Ohm 10% 1W 1Elec/1MechTurn 3.17mm 22.23 X 33.66mm Turret Panel Mount
Chip1Stop:
Res POT 1K Ohm 10% 1W 1Elec/1MechTurns 3.17mm 22.23 X 33.66mm Turret Panel Mount
TME:
Potentiometer: shaft; single turn; 1kΩ; 1W; ±10%; 3.17mm; linear
Verical:
Res POT 1K Ohm 10% 1W 1Elec/1MechTurns 3.17mm 22.23 X 33.66mm Turret Panel Mount
Newark:
# BOURNS 6637S-1-102 Rotary Potentiometer, Precision, 1 kohm, 1 W, ± 10%, 6637S Series, 1 Turns, Linear
MASTER:
Res POT 1K Ohm 10% 1W 1Elec/1MechTurns 3.17mm 22.23 X 33.66mm Turret Panel Mount
Electro Sonic:
Res POT 1K Ohm 10% 1W 1Elec/1MechTurns 3.17mm 22.23 X 33.66mm Turret Panel Mount
