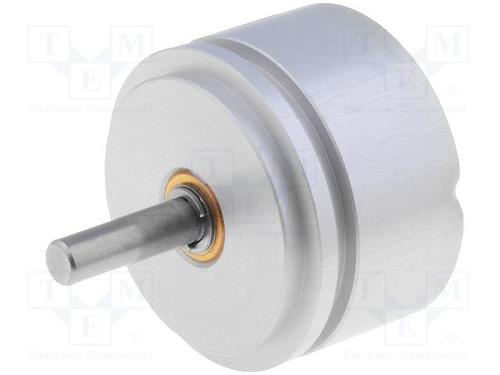

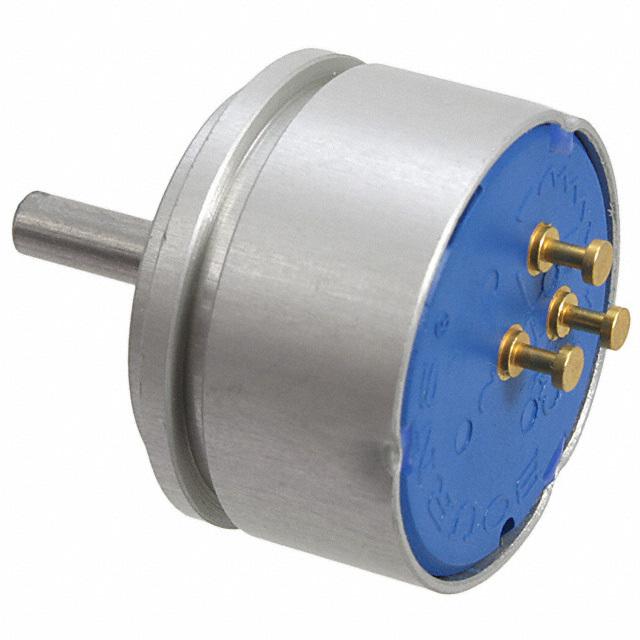

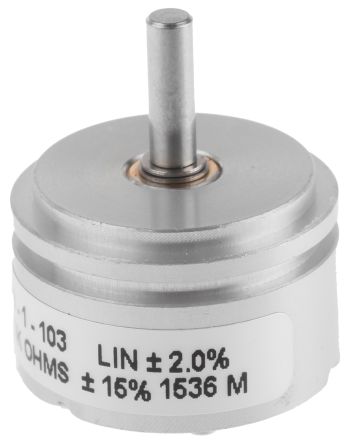

BOURNS 6539S-1-103 旋转电位器, 6539S系列, 10 kohm, 线性, 1 转, 1 W, 伺服
7/8 in 伺服安装 6539 系列
基本无限的分辨率
极佳的旋转寿命
高质量，结构坚固
通用应用
欧时:
Bourns 6539 系列 10kΩ ±15% 旋转 精密电位计 6539S-1-103, 1W, 3.18 mm 直径轴, ±500ppm/°C, 面板安装
艾睿:
Apply this 6539S-1-103 potentiometer from Bourns to infrequently adjust the resistance value for your circuit. This product has a resistance value of 10K Ohm. This part has a power rating of 1 W. Its temperature coefficient is ±500 ppm/°C. This part has an operating temperature of 1 to 125 °C. The 6539S-1-103 part has a turret termination style. It has a tolerance of 15%. This product is 28.58 mm tall with a diameter of 22.23 mm.
Allied Electronics:
Potentiometer; Precision; 10K Ohm; 15%
安富利:
Res POT 10K Ohm 15% 1W 1Elec/1MechTurn 3.17mm 22.23 X 28.58mm Turret Servo Mount
TME:
Potentiometer: shaft; single turn; 10kΩ; 1W; ±15%; 3.17mm; linear
Verical:
Res POT 10K Ohm 15% 1W 1Elec/1MechTurns 3.17mm 22.23 X 28.58mm Turret Servo Mount
Newark:
# BOURNS 6539S-1-103 Rotary Potentiometer, 10 kohm, 1 W, ± 15%, 6539S Series, 1 Turns, Linear
MASTER:
Res POT 10K Ohm 15% 1W 1Elec/1MechTurns 3.17mm 22.23 X 28.58mm Turret Servo Mount
Electro Sonic:
Res POT 10K Ohm 15% 1W 1Elec/1MechTurns 3.17mm 22.23 X 28.58mm Turret Servo Mount
