62JA1K

HONEYWELL  62JA1K  绕线电阻, 10转 2W 5%

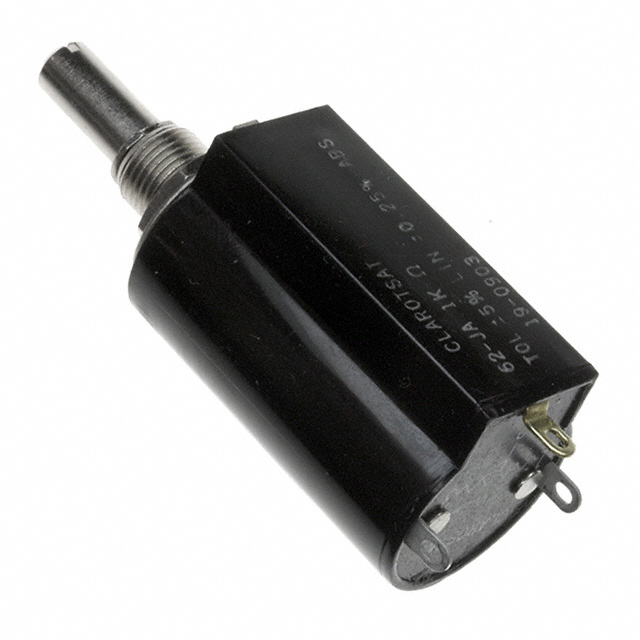

62 Series 10-Turn Potentiometer — Type 62JA

3⁄8" Plain bushing.

.

*Slotted shaft:** 15⁄16" FMS. 100,000 shaft revolutions life. Sleeve bearings. **Functional Output:** Linear. **Absolute Linearity:** ±0.25%. **Power Dissipation:** 2 Watts at 25°C. **Stop Torque:** 50 Oz.-in. **Effective Rotation:** 360°.

得捷:
POT 1K OHM 2W WIREWOUND LINEAR

艾睿:
Res Wirewound POT 1K Ohm 5% 2W 10Elec/10MechTurns 6.32mm 22.23 X 25.4 X 68.26mm Solder Lug Panel Mount

Allied Electronics:
Potentiometer; Wirewound; Res 1 kOhm; Panel; 10 Turns; Pwr-Rtg 2 W; Linear

Chip1Stop:
Res Wirewound POT 1K Ohm 5% 2W 10Elec/10MechTurn 6.32mm 22.23 X 25.4 X 68.26mm Solder Lug Panel Mount

Newark:
Rotary Potentiometer, Wirewound, 1 kohm, 2 W, ± 5%, 62 Series, 10 Turns, Linear

Powell:
RESISTIVE & OPTICAL

Online Components:
Res Wirewound POT 1K Ohm 5% 2W 10Elec/10MechTurns 6.32mm 22.23 X 25.4 X 68.26mm Solder Lug Panel Mount

Electro Sonic:
Res Wirewound POT 1K Ohm 5% 2W 10Elec/10MechTurns 6.32mm 22.23 X 25.4 X 68.26mm Solder Lug Panel Mount
