Res Wirewound POT 5KΩ 5% 2W 10Elec/10MechTurn 6.32mm 22.23 X 25.4 X 68.26mm Solder Lug Panel Mount
5k 欧姆 1 组 线性 面板安装 电位计 无 10 匝 绕线 2W 焊片
得捷:
POT 5K OHM 2W WIREWOUND LINEAR
Allied Electronics:
Potentiometer; Wirewound; Res 5 kOhm; Panel; 10 Turns; Pwr-Rtg 2 W; Linear
Chip1Stop:
Res Wirewound POT 5K Ohm 5% 2W 10Elec/10MechTurn 6.32mm 22.23 X 25.4 X 68.26mm Solder Lug Panel Mount
Verical:
Res Wirewound POT 5K Ohm 5% 2W 10Elec/10MechTurns 6.32mm 22.23 X 25.4 X 68.26mm Solder Lug Panel Mount
Newark:

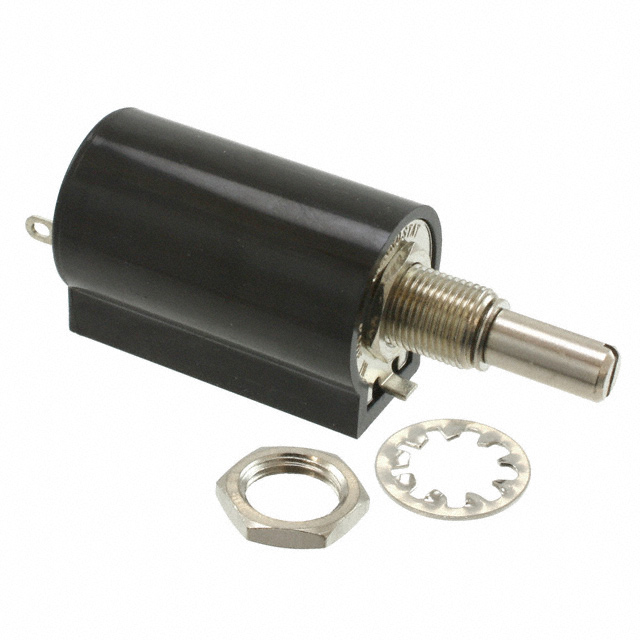

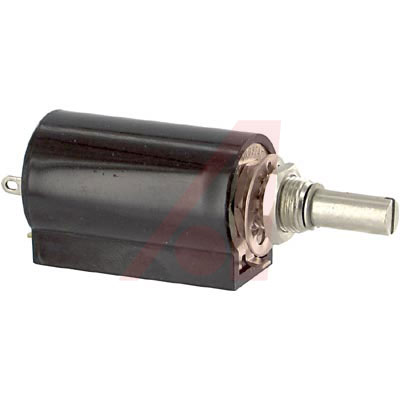

The 62JA5K is a 5kΩ 2W 10-turn 1-gang panel-mounting wirewound Rotary Potentiometer with screwdriver slot adjustment and linear track taper. The precise potentiometer offers electrical operating characteristics comparable to units and designed specifically for industrial market. It opens new application areas for the inherent advantages of multi-turn potentiometer design. Based upon the setability and resolution of a quality 10-turn potentiometer, includes better instrument control and settings for all types of electronic equipment.
Powell:
RESISTIVE & OPTICAL
Online Components:
Res Wirewound POT 5K Ohm 5% 2W 10Elec/10MechTurns 6.32mm 22.23 X 25.4 X 68.26mm Solder Lug Panel Mount
Electro Sonic:
Res Wirewound POT 5K Ohm 5% 2W 10Elec/10MechTurns 6.32mm 22.23 X 25.4 X 68.26mm Solder Lug Panel Mount
容差 ±5 %
额定功率 2 W
电阻 5 KΩ
阻值偏差 ±5 %
工作温度Max 120 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
封装 Round - 0.875" Dia x 1.563" H 22.23mm x 39.69mm
长度 39.7 mm
高度 68.26 mm
直径 22.4 mm
封装 Round - 0.875" Dia x 1.563" H 22.23mm x 39.69mm
工作温度 -55℃ ~ 85℃
温度系数 ±20 ppm/℃
产品生命周期 Obsolete
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
HTS代码 8533310000
