POMONA 6365 测试引线套件, 测试末端探头, 4mm香蕉插头, 带护罩, 1 kV, 10 A, 黑色、红色, 1.219 m

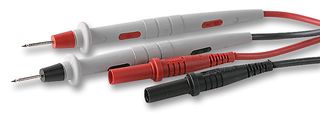

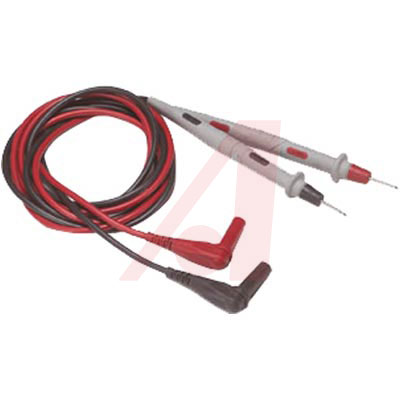

The is a 48-inch replacement Test Lead Kit for sheathed style DMM"s. Santoprene® rubber outer probe body, polypropylene, fire retardant inner probe body, brass tip, 20AWG PVC tinned copper stand, wire. The banana plug with nickel-plated brass body, nickel-plated beryllium copper, spring, PVC insulation 0.144-inch outer diameter wire. Designed for Fluke, H-P, Tektronix and Wavetek DMM"s with a safety style of sheathed banana jack. Probe body incorporates a two step mould process. First step is Polypropylene for probe rigidity. Second step is Santoprene® rubber for handling comfort, added insulation protection and wire strain relief. Probe test leads are designed with Overvoltage spike protection of up to 6kV. Probe body and banana plug are moulded directly to the wire for robust pull strength. Wire is a high strand count silicone wire for extreme flexibility and high temperature resistance.
- .
- Black and red insulator
- .
- 1000Vrms/DC Operating voltage
- .
- High temperature resistance
