6731

测试探头 DIFF O-SCOPE PROBE

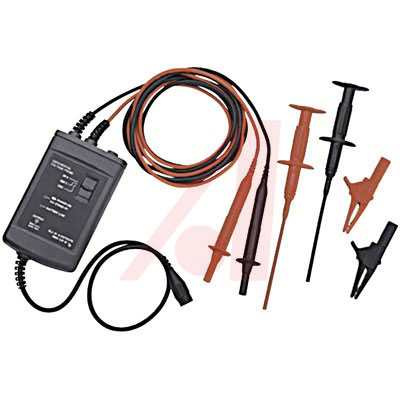

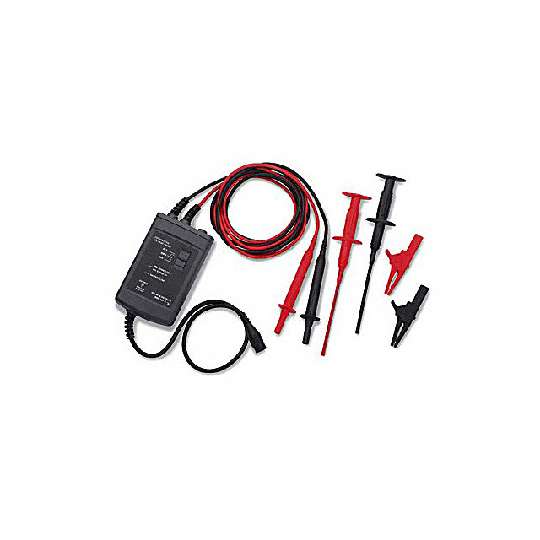

Active Differential Probe

* Switchable attenuation settings

* Maximum differential voltage up to 1000 V

* Probe tip accepts large alligator clips and pin-grabber test clips

* Safely Make Floating Voltage Measurements While Using a General Purpose Oscilloscope

* Switchable Attenuation of 20:1 and 200:1

* High Impedance to Ground for Both Positive and Negative Side of Balanced Input with Maximum Differential Input Voltage Up to 1000 VDC or V rms 1200 VBD + Peak AC

* Bandwidth from DC to 20 MHz -3 dB

* Risetime: 17.5 ns

* Includes 2 Large Jaw Alligator Clips, 2 Pin-Grabber Test Clips and 9 V Alkaline Battery
