643814-5

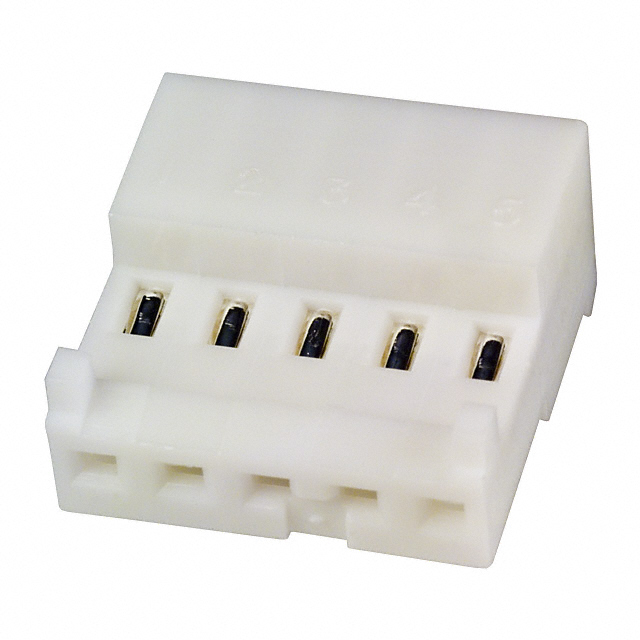

Conn IDC Connector F 5POS 2.54mm IDT RA Cable Mount Bag

05P MTA100 CONN ASSY POL RIB

Product Highlights

MTA-100 Connectors

Number of Positions = 5

Mating Type = Receptacle

Connector Type = Closed End

Wire-to-Board Application

得捷:
CONN RCPT 5P IDC 24AWG TIN-LEAD

艾睿:
This idc connector 643814-5 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This F connector&s;s 5 contacts that are made out of copper alloy and plated with tin-lead over nickel. It has a maximum voltage rating of 250 VAC. This is a 1-row connector. Its pitch is 2.54 mm. It has a right angle body orientation. It has a female type gender. This device has a maximum current rating of 5 A/contact. This connector has an operating temperature of -55 to 105 °C. 643814-5 is housed in white nylon. This product is 12.7 mm long, 6.99 mm tall and 13.21 mm deep. It uses the idt termination method.

安富利:
Conn IDC Connector F 5 POS 2.54mm IDT RA Cable Mount Loose Piece

MASTER:
05P MTA100 CONN ASSY POL RIB

Electro Sonic:
05P MTA100 CONN ASSY POL RIB
