640428-6

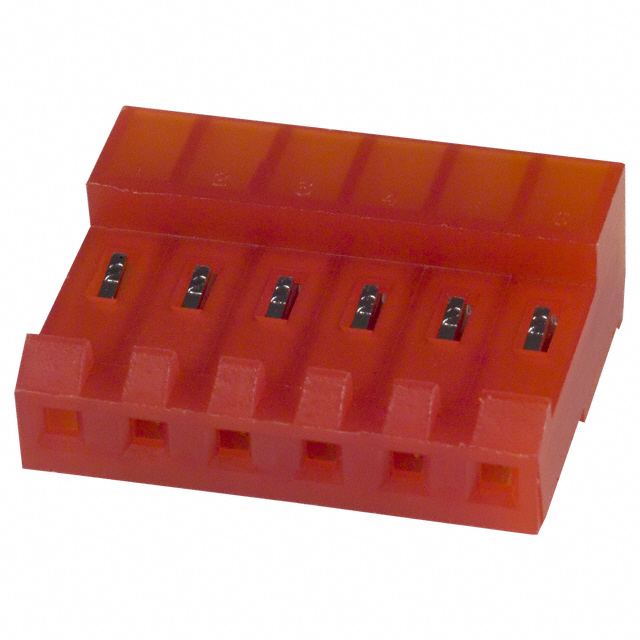

Conn IDC Connector F 6POS 3.96mm IDT RA Cable Mount

6 位置矩形连 插座 IDC 锡 - 铅 22 AWG

得捷:
CONN RCPT 6P IDC 22AWG TIN-LEAD

艾睿:
As an added safety precaution, the idc connector 640428-6 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This F connector&s;s 6 contacts that are made out of copper alloy and plated with tin-lead over nickel. Its pitch is 3.96 mm. This is a 1-row connector. It has a maximum voltage rating of 600 VAC. It has a female type gender. It has a right angle body orientation. This device has a maximum current rating of 7 A/contact. This connector has an operating temperature of -55 to 105 °C. This product is 23.77 mm long, 9.02 mm tall and 18.42 mm deep. It uses the idt termination method. 640428-6 is housed in red nylon.

安富利:
Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount

Chip1Stop:
Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount

Verical:
Conn IDC Connector F 6Power POS 3.96mm IDT RA Cable Mount Bag/Box

Newark:
06P MTA156 CONN ASSY 22AWG RED

Electro Sonic:
06P MTA156 CONN ASSY 22AWG RED
