640622-2

集管和线壳 FEED THRU W/O TAB 2P blue tin 26 AWG

02CIR MTA100 FD THR ASSY BLUE

Product Highlights

MTA-100 Connectors

Number of Positions = 2

Mating Type = Receptacle

Connector Type = Feed Thru

Wire-to-Board Application

得捷:
CONN RCPT 2P IDC 26AWG TIN-LEAD

贸泽:
集管和线壳 FEED THRU W/O TAB 2P blue tin 26 AWG

艾睿:

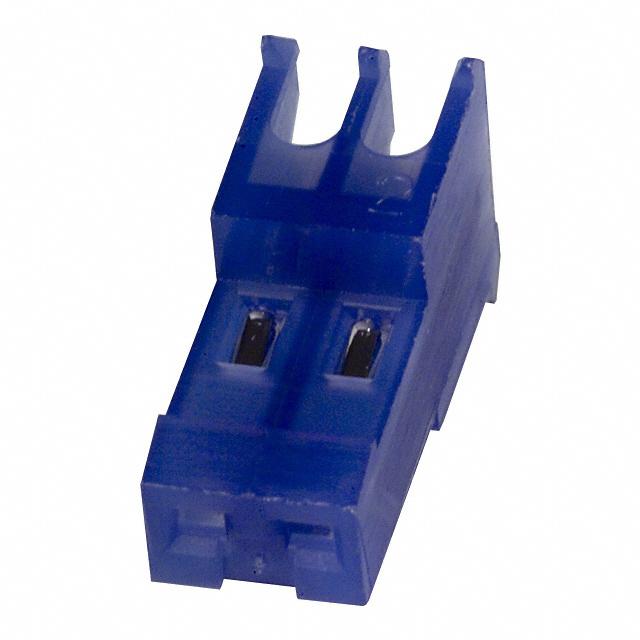

This idc connector 640622-2 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This F connector&s;s 2 contacts that are made out of copper alloy and plated with tin-lead over nickel. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. Its pitch is 2.54 mm. This is a 1-row connector. It has a female type gender. This device has a maximum current rating of 5 A/contact. This connector has an operating temperature of -55 to 105 °C. 640622-2 is housed in blue nylon. It uses the idt termination method. This product is 5.08 mm long, 7.75 mm tall and 13.21 mm deep.

安富利:
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece

Verical:
Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Bag/Box

MASTER:
02CIR MTA100 FD THR ASSY BLUE

Electro Sonic:
02CIR MTA100 FD THR ASSY BLUE
