640621-6

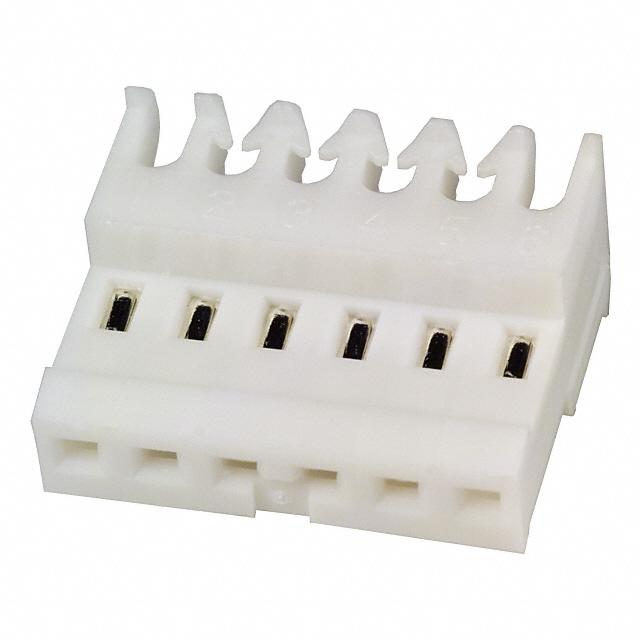

Conn IDC Connector F 6POS 2.54mm IDT RA Cable Mount Automotive Bag

06P MTA100 CONN ASSY F/T NATL

Product Highlights

MTA-100 Connectors

Number of Positions = 6

Mating Type = Receptacle

Connector Type = Feed Thru

Wire-to-Board Application

得捷:
CONN RCPT 6P IDC 24AWG TIN-LEAD

艾睿:
TE Connectivity brings you their idc connector 640621-6 header connector, an important safety tool for protecting your electronic components from accidental damage. This F connector&s;s 6 contacts that are made out of copper alloy and plated with tin-lead over nickel. It has a maximum voltage rating of 250 VAC. It has a female type gender. This is a 1-row connector. It has a right angle body orientation. Its pitch is 2.54 mm. This device has a maximum current rating of 5 A/contact. It uses the idt termination method. This product is 15.24 mm long, 7.75 mm tall and 13.21 mm deep. 640621-6 is housed in white nylon. This connector has an operating temperature of -55 to 105 °C.

Verical:
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Bag/Box

MASTER:
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Automotive Bag/Box

Electro Sonic:
Conn IDC Connector F 6 POS 2.54mm IDT RA Cable Mount Automotive Bag/Box
