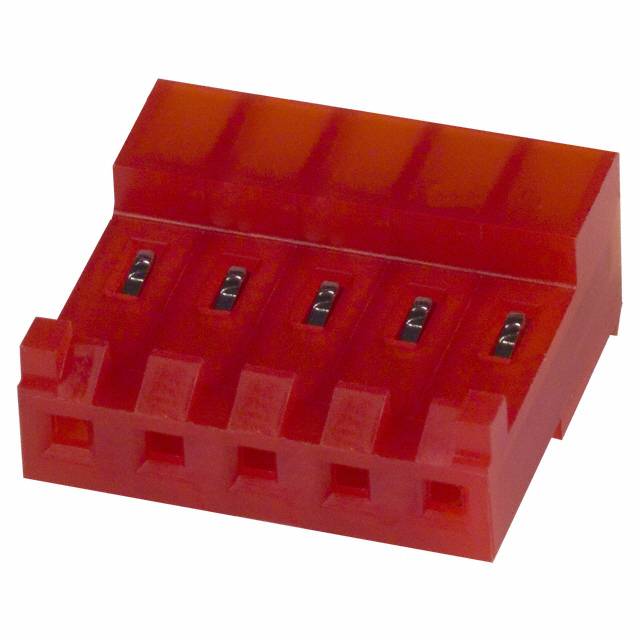

643819-5

Conn IDC Connector F 5POS 3.96mm IDT RA Cable Mount

05P MTA156 CONN ASSY 22AWG RED

Product Highlights

MTA-156 Connectors

Number of Positions = 5

Mating Type = Receptacle

Connector Type = Closed End

Wire-to-Board Application

得捷:
CONN RCPT 5P IDC 22AWG TIN-LEAD

贸泽:
Headers & Wire Housings CLOSED WITH TABS 5P L.R. red 22 AWG

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this idc connector 643819-5 header connector from TE Connectivity. This F connector&s;s 5 contacts that are made out of copper alloy and plated with tin-lead. It has a maximum voltage rating of 600 VAC. It has a right angle body orientation. This is a 1-row connector. It has a female type gender. Its pitch is 3.96 mm. This device has a maximum current rating of 7 A/contact. This connector has an operating temperature of -55 to 105 °C. It uses the idt termination method. This product is 19.81 mm long, 9.02 mm tall and 18.42 mm deep. 643819-5 is housed in red nylon.

安富利:
Conn IDC Connector F 5 POS 3.96mm IDT RA Cable Mount

Verical:
Conn IDC Connector F 5Power POS 3.96mm IDT RA Cable Mount Bag/Box

Newark:
# AMP - TE CONNECTIVITY  643819-5  05P MTA156 CONN ASSY 22AWG RED

MASTER:
05P MTA156 CONN ASSY 22AWG RED

Electro Sonic:
05P MTA156 CONN ASSY 22AWG RED
