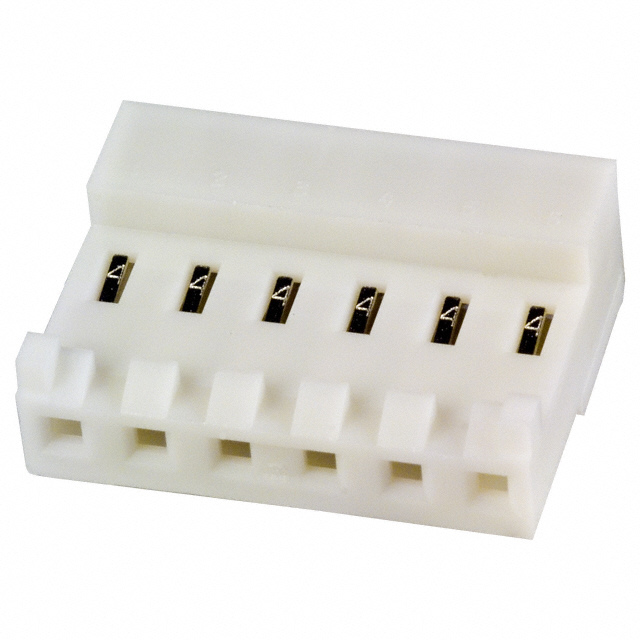

集管和线壳 CLOSED WITH TABS 6P L.R. natural 24 AWG
06P MTA156 CONN ASSY 24AWG WHT
Product Highlights
Connector Assembly
6 Positions
Connector Style = Receptacle
Contact Type = Receptacle
Connector Design = Closed End
得捷:
CONN RCPT 6P IDC 24AWG TIN-LEAD
贸泽:
集管和线壳 CLOSED WITH TABS 6P L.R. natural 24 AWG
Verical:
Conn IDC Connector F 6 POS 3.96mm IDT RA Cable Mount Bag/Box
MASTER:
06P MTA156 CONN ASSY 24AWG WHT
Electro Sonic:
06P MTA156 CONN ASSY 24AWG WHT
触点数 6
线规 24 AWG
触点电镀 Tin Lead
额定电压AC 600 V
额定电流 7.00 A
排数 1
易燃性等级 UL 94 V-2
针脚数 6
带凸肩 No
额定电流Max 7A/触头
额定电压Max 600 VAC
接触电阻Max 3 mΩ
安装方式 Through Hole
引脚间距 3.96 mm
长度 23.8 mm
宽度 9.02 mm
高度 9.02 mm
引脚间距 3.96 mm
外壳颜色 White
颜色 White
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Nylon 6/6
产品生命周期 End of Life
包装方式 Bag
制造应用 Power
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
