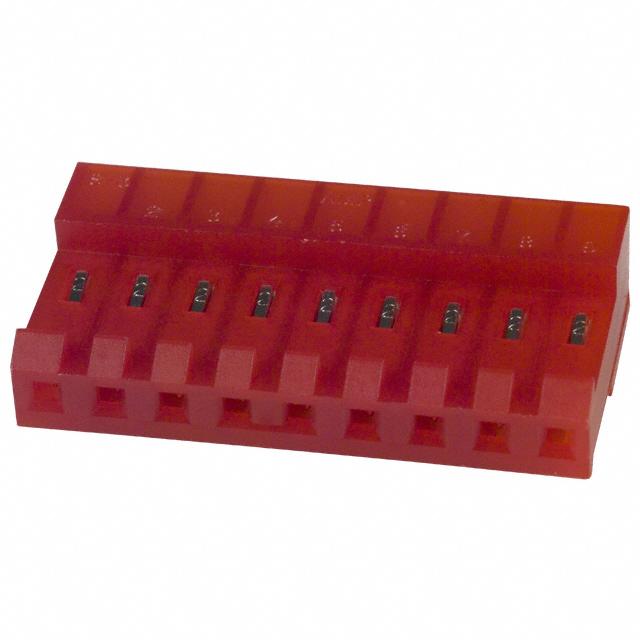

640428-9

Conn IDC Connector F 9POS 3.96mm IDT RA Cable Mount Bag

09P MTA156 CONN ASSY 22AWG RED

Product Highlights

MTA-156 Connectors

Number of Positions = 9

Mating Type = Receptacle

Connector Type = Closed End

Wire-to-Board Application

得捷:
CONN RCPT 9P IDC 22AWG TIN-LEAD

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this idc connector 640428-9 header connector from TE Connectivity. This F connector&s;s 9 contacts that are made out of copper alloy and plated with bright tin-lead over nickel. Its pitch is 3.96 mm. It has a female type gender. It has a right angle body orientation. It has a maximum voltage rating of 600 VAC. This is a 1-row connector. This device has a maximum current rating of 7 A/contact. This product is 35.66 mm long, 9.02 mm tall and 18.42 mm deep. It uses the idt termination method. 640428-9 is housed in red nylon. This connector has an operating temperature of -55 to 105 °C.

Verical:
Conn HDR, 09P MTA156 CONN ASSY 22AWG RED

Online Components:
09P MTA156 CONN ASSY 22AWG RED

Electro Sonic:
09P MTA156 CONN ASSY 22AWG RED
