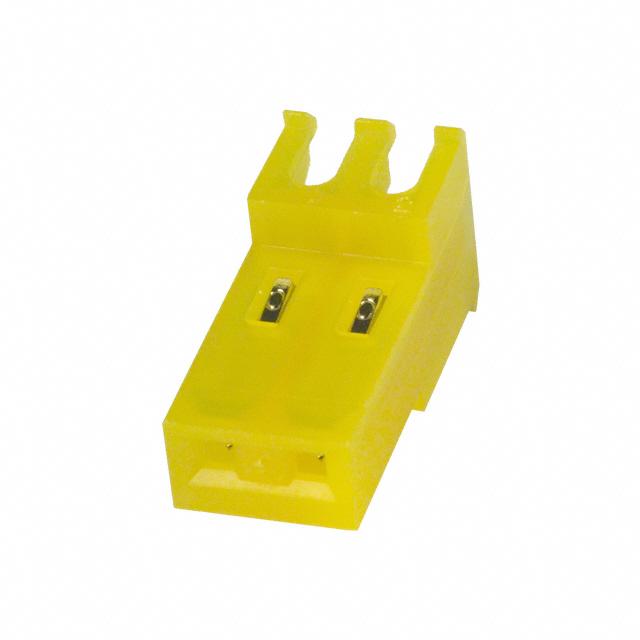

Conn IDC Connector F 2POS 3.96mm IDT RA Cable Mount
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount
Product Highlights
MTA-156 Connectors
Number of Positions = 2
Mating Type = Receptacle
Connector Type = Feed Thru
Wire-to-Board Application
得捷:
CONN RCPT 2P IDC 20AWG TIN-LEAD
Chip1Stop:
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount
Verical:
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount
MASTER:
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount
Electro Sonic:
Conn IDC Connector F 2 POS 3.96mm IDT RA Cable Mount
触点数 2
线规 20 AWG
触点电镀 Tin Lead
额定电压AC 600 V
额定电流 7.00 A
排数 1
易燃性等级 UL 94 V-2
针脚数 2
带凸肩 No
额定电流Max 7A/触头
额定电压Max 600 VAC
接触电阻Max 3 mΩ
引脚间距 3.96 mm
长度 7.92 mm
宽度 18.4 mm
高度 18.42 mm
引脚间距 3.96 mm
外壳颜色 Yellow
颜色 Yellow
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Nylon
产品生命周期 Superseded
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536694040
