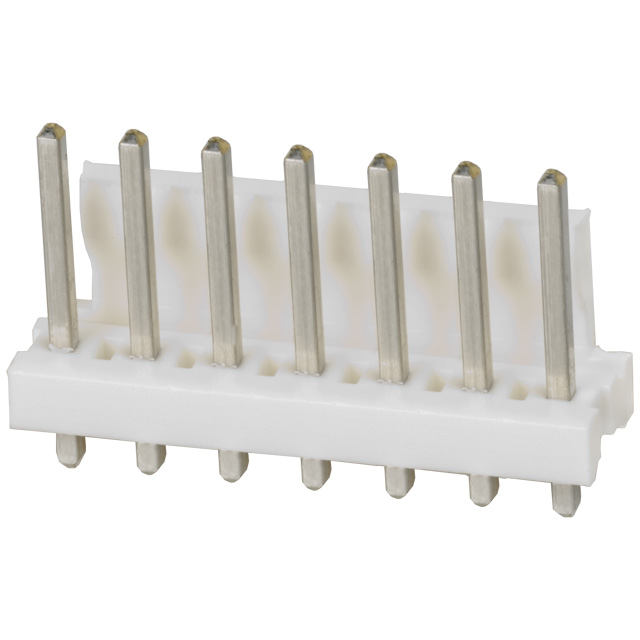

644752-7

AMP - TE CONNECTIVITY 644752-7 Wire-To-Board Connector, 3.96mm, 7Contacts, Header, MTA-156 Series, Through Hole, 1Rows

07P MTA156 HDR ASSY SQ STR F/L

Product Highlights

MTA-156 Connectors

Number of Positions = 7

Mating Type = Header

Wire-to-Board Application

3.96 mm Contact Centerline Spacing

得捷:
CONN HEADER VERT 7POS 3.96MM

贸泽:
Headers & Wire Housings HEADER VERT 7POS TIN

艾睿:
Support physical configuration options for jumper posts by mounting this wire to board 644752-7 header connector from TE Connectivity. This HDR connector&s;s 7 contacts that are made out of copper alloy and plated with tin. It has a header type gender. It has a straight body orientation. This is a 1-row connector. Its pitch is 3.96 mm. It has a maximum voltage rating of 600 VAC. This device has a maximum current rating of 7 A/contact. This product is 27.74 mm long, 13.33 mm tall and 7.62 mm deep. 644752-7 is housed in natural polyester. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method.

安富利:
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole

Verical:
Conn Wire to Board HDR 7 POS 3.96mm Solder ST Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  644752-7  Wire-To-Board Connector, 3.96 mm, 7 Contacts, Header, MTA-156 Series, Through Hole, 1 Rows

MASTER:
MTA-.156 HEADER ASSEMBLY, FRICTION LOCK, STRAIGHT .045 SQUARE POST, TIN PLATED, SPECIAL

Electro Sonic:
07P MTA156 HDR ASSY SQ STR F/L
