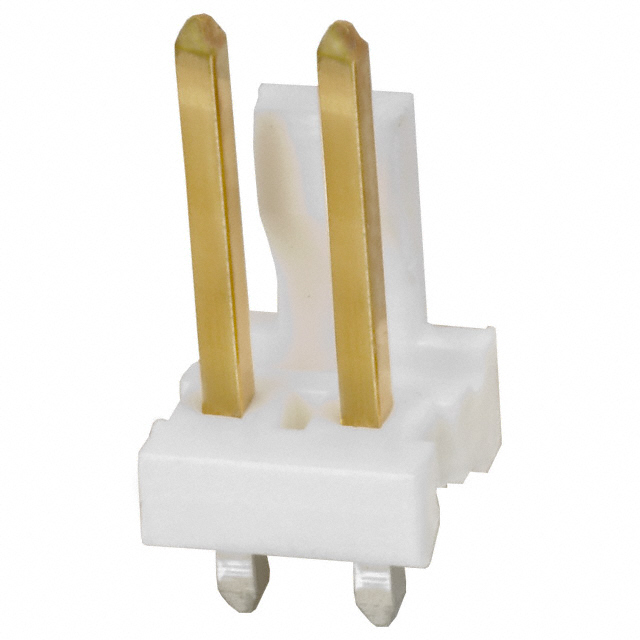

641208-2

Conn Wire to Board HDR 2POS 3.96mm Solder ST Thru-Hole

02P MTA156 HDR ASSY FL ST 30AU

Product Highlights

MTA-156 Connectors

Number of Positions = 2

Mating Type = Header

Wire-to-Board Application

3.96 mm Contact Centerline Spacing

得捷:
CONN HEADER VERT 2POS 3.96MM

贸泽:
Headers & Wire Housings FRCTN LK HDR STR 2P Square post gold

艾睿:
As an added safety precaution, the wire to board 641208-2 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 2 contacts that are made out of copper alloy and plated with gold over nickel. This is a 1-row connector. It has a maximum voltage rating of 600 VAC. Its pitch is 3.96 mm. It has a header type gender. It has a straight body orientation. This device has a maximum current rating of 7 A/contact. This product is 7.92 mm long, 13.34 mm tall and 7.62 mm deep. 641208-2 is housed in white polyester. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method.

Jameco:
Connector Wire to Board Header 2 Position 3.96mm Solder Straight Thru-Hole

安富利:
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole

Chip1Stop:
Conn Wire to Board HDR 2 POS 3.96mm Solder ST Thru-Hole

Verical:
Conn Wire to Board HDR 2Power POS 3.96mm Solder ST Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  641208-2  02P MTA156 HDR ASSY FL ST 30AU New

MASTER:
02P MTA156 HDR ASSY FL ST 30AU

Electro Sonic:
02P MTA156 HDR ASSY FL ST 30AU
