640453-9

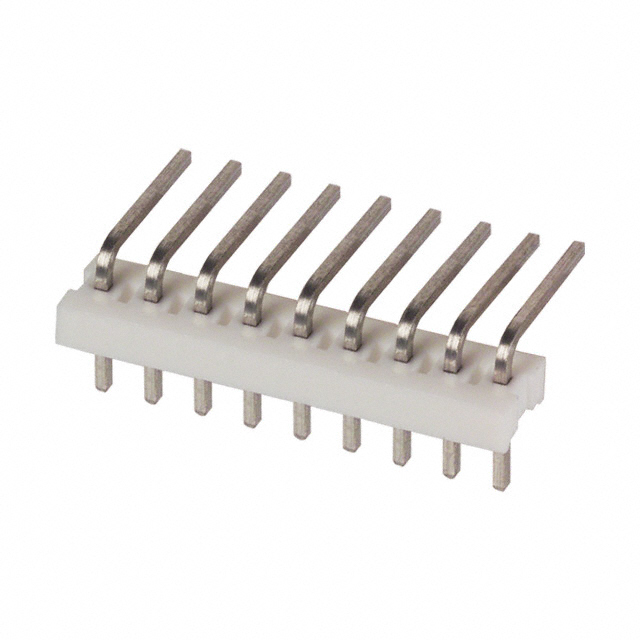

Conn Unshrouded Header HDR 9POS 2.54mm Solder RA Thru-Hole

09P MTA100 HDR ASSY SQ R/A

Product Highlights

MTA-100 Connectors

Number of Positions = 9

Mating Type = Header

Wire-to-Board Application

2.54 mm Contact Centerline Spacing

得捷:
CONN HEADER R/A 9POS 2.54MM

艾睿:
Safety is an important concern when designing electronic devices. TE Connectivity&s;s unshrouded 640453-9 header connector helps protect your equipment from accidental shortages. This HDR connector&s;s 9 contacts that are made out of copper alloy and plated with tin over nickel. Its pitch is 2.54 mm. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. This device has a maximum current rating of 5 A/contact. This connector has an operating temperature of -55 to 105 °C. This product is 22.86 mm long, 4.11 mm tall and 12.57 mm deep. It uses the solder termination method. 640453-9 is housed in white polyester.

安富利:
Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn Unshrouded Header HDR 9 POS 2.54mm Solder RA Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  640453-9  09P MTA100 HDR ASSY SQ R/A New

MASTER:
MTA 100 HEADER ASSEMBLY, PLAIN, .025 SQUARE RIGHT ANGLE POST, TIN-PLATED

Online Components:
09P MTA100 HDR ASSY SQ R/A

Electro Sonic:
09P MTA100 HDR ASSY SQ R/A
