640453-7

Board-To-Board Connector, 2.54mm, 7Contacts, Header, MTA-100 Series, Through Hole, 1Rows

针座 通孔，直角 7 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 7POS 2.54MM

贸泽:
Headers & Wire Housings FLAT HEADER 7P Right Angle Post tin

艾睿:

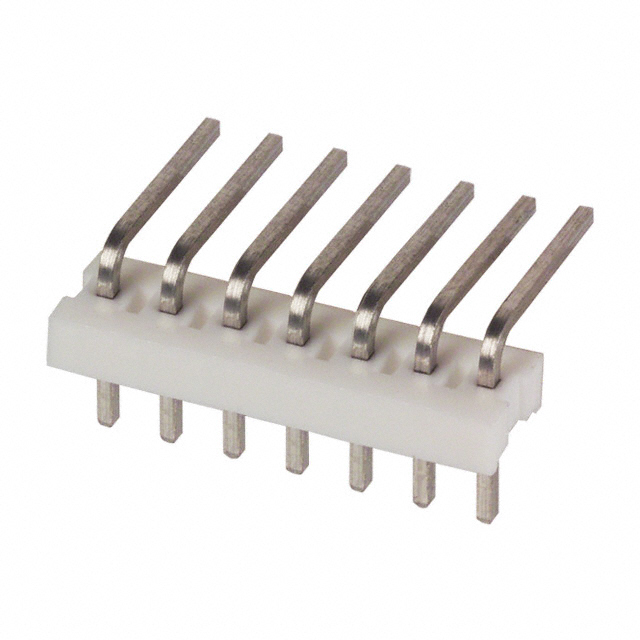

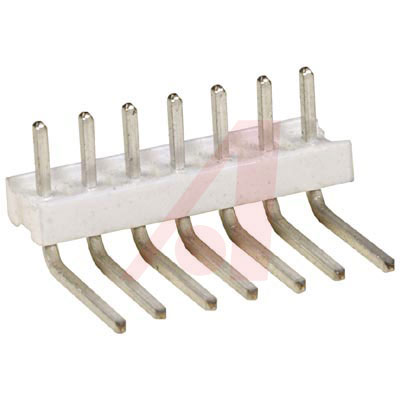

As an added safety precaution, the unshrouded 640453-7 header connector from TE Connectivity will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector&s;s 7 contacts that are made out of copper alloy and plated with tin over nickel. It has a maximum voltage rating of 250 VAC. It has a right angle body orientation. Its pitch is 2.54 mm. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 5 A/contact. It uses the solder termination method. 640453-7 is housed in white polyester. This product is 17.78 mm long, 4.11 mm tall and 12.57 mm deep. This connector has an operating temperature of -55 to 105 °C.

Allied Electronics:
Header; MTA-100; 7; 250 VAC; Polyester; Tin; Copper Alloy; 0.100 in.; Tin; AMP

Verical:
Conn Unshrouded Header HDR 7 POS 2.54mm Solder RA Thru-Hole Package

Newark:
Board-To-Board Connector, 2.54 mm, 7 Contacts, Header, MTA-100 Series, Through Hole, 1 Rows

MASTER:
MTA 100 HEADER ASSEMBLY, PLAIN, .025 SQUARE RIGHT ANGLE POST, TIN-PLATED

Online Components:
07P MTA100 HDR ASSY SQ R/A

Electro Sonic:
07P MTA100 HDR ASSY SQ R/A
