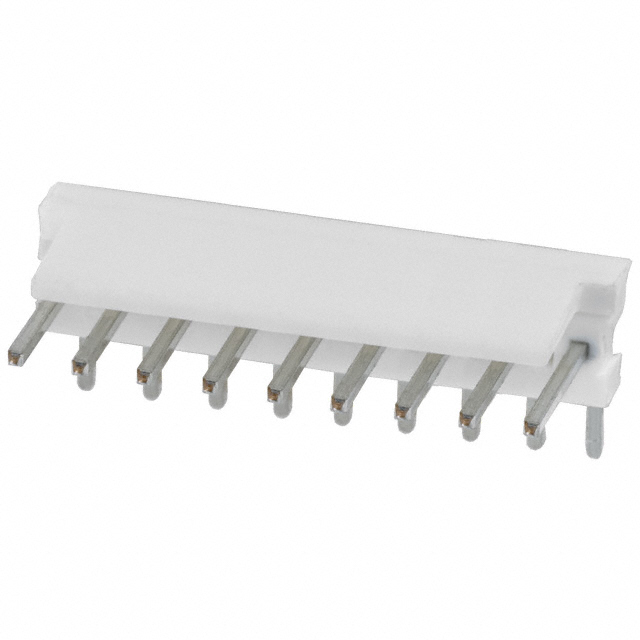

Conn Wire to Board HDR 9POS 2.54mm Solder RA Thru-Hole
09P MTA100 HDR ASSY SQ R/A POL
Product Highlights
MTA-100 Connectors
Number of Positions = 9
Mating Type = Header
Wire-to-Board Application
2.54 mm Contact Centerline Spacing
得捷:
CONN HEADER R/A 9POS 2.54MM
安富利:
Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole
Verical:
Conn Wire to Board HDR 9 POS 2.54mm Solder RA Thru-Hole Package
Newark:
# AMP - TE CONNECTIVITY 640455-9 09P MTA100 HDR ASSY SQ R/A POL New
MASTER:
MTA-.100 HDR ASSY, POLARIZED, NOTCHED, .025 SQUARE
Online Components:
09P MTA100 HDR ASSY SQ R/A POL
Electro Sonic:
09P MTA100 HDR ASSY SQ R/A POL
触点数 9
极性 Male
触点电镀 Tin
额定电压AC 250 V
排数 1
方向 Right Angle
易燃性等级 UL 94 V-0
针脚数 9
安装角度 90.0 °
带凸肩 No
额定电流Max 5A/触头
额定电压Max 250 VAC
额定电压 250 VAC
接触电阻Max 6 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 22.9 mm
宽度 7.87 mm
高度 5.72 mm
引脚间距 2.54 mm
外壳颜色 White
颜色 Natural
触点材质 Copper Alloy
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
制造应用 Signal, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
