640505-1

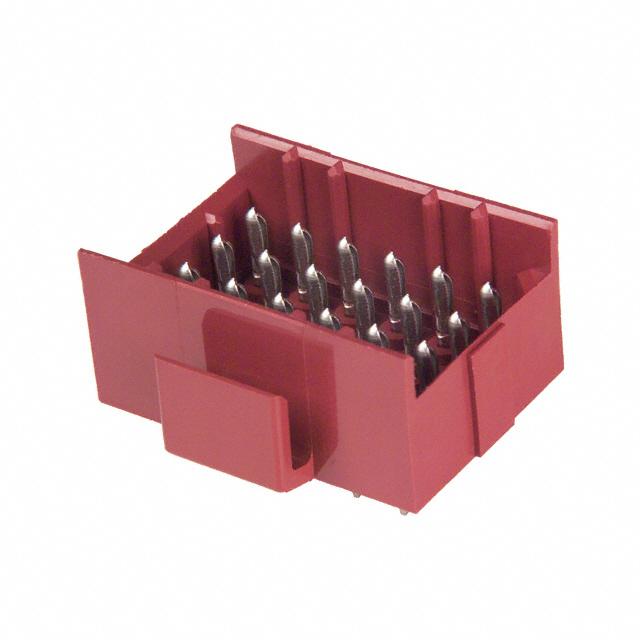

AMP FROM TE CONNECTIVITY  640505-1  Rectangular Connector, MR系列, 24 触点, 插头, 4.19 mm, 通孔安装, 4排

针座 通孔 24 位置 0.165"（4.20mm）

得捷:
CONN HEADER VERT 24POS 4.2MM

e络盟:
Rectangular Connector, MR系列, 24 触点, 插头, 4.19 mm, 通孔安装, 4排

艾睿:
An ideal solution for versatile electrical connections, this 640505-1 USB connector from TE Connectivity keeps a strong and rugged connection. This is a 6-row connector. It has a straight body orientation. It has a receptacle type gender. It has a maximum voltage rating of 250 VAC. Its pitch is 4.19 mm. This RCP connector&s;s 24 contacts that are made out of phosphor bronze and plated with pre-tin. This device has a maximum current rating of 9 A/contact. 640505-1 is housed in nylon. It uses the solder termination method. This product is 27.55 mm long and 29.33 mm. This harting connector has an operating temperature of -55 to 105 °C.

安富利:
Conn Rectangular PIN 24 POS 4.19mm Solder ST Thru-Hole Bag

Chip1Stop:
Conn Rectangular PIN 24 POS 4.19mm Solder ST Thru-Hole Bag

Verical:
Conn HDR, 24P MR HDR ASSY V0 RED

Newark:
# AMP - TE CONNECTIVITY  640505-1  Rectangular Connector, MR Series, 24 Contacts, Plug, 4.19 mm, Through Hole, 4 Row

MASTER:
HEADER ASSEMBLY, PIN, 24 POSITION, MR.

Powell:
.165" Centerline, 250 V, 9 A max.

Electro Sonic:
24P MR HDR ASSY V0 RED
