6-102570-5

Conn Shrouded Header HDR 34POS 2.54mm Solder RA Thru-Hole Tray

Connector Header Through Hole, Right Angle 34 position 0.100" 2.54mm

得捷:
CONN HEADER R/A 34POS 2.54MM

艾睿:

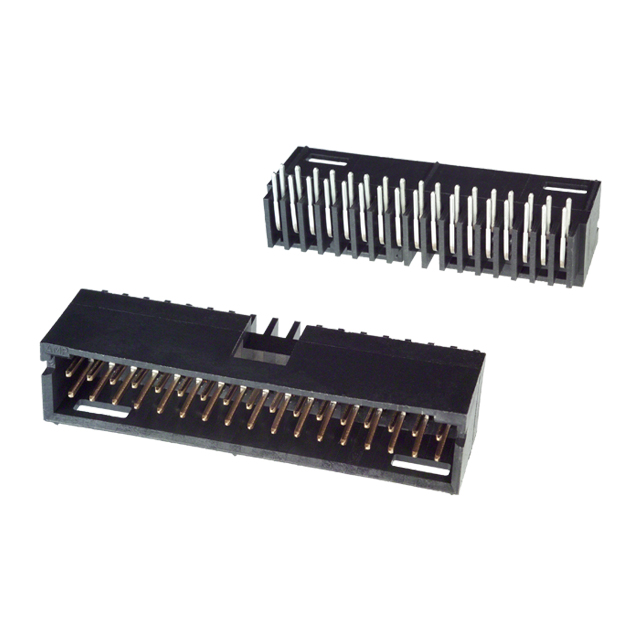

This shrouded 6-102570-5 header connector from TE Connectivity is used for jumper posts to support physical configuration options on printed circuit boards. This HDR connector&s;s 34 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. It has a header type gender. Its pitch is 2.54 mm. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. The component will be shipped in tray format. This connector has an operating temperature of -55 to 105 °C. It uses the solder termination method. 6-102570-5 is housed in black thermoplastic. This product is 50.29 mm long, 10.16 mm tall and 16.23 mm deep.

Verical:
Conn Shrouded Header 4 Sides HDR 34 POS 2.54mm Solder RA Thru-Hole Tray

Powell:
.100 inch AMPMODU Headers
