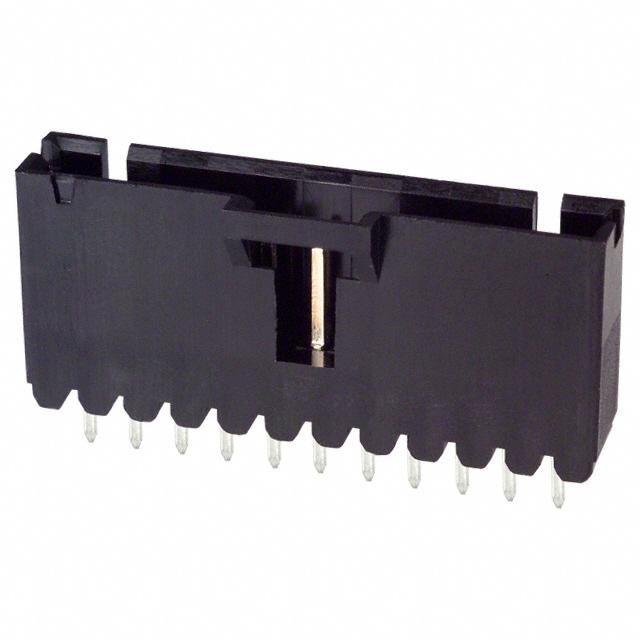

6-104363-0

集管和线壳 11MTE HDR SRST LATCH .100CL

11 MTE HDR SRST LATCH .100CL

Product Highlights

Header

Number of Positions = 11

Number of Rows = Single

Post Size = 0.64 [.025] mm [in]

Terminate To Printed Circuit Board

得捷:
CONN HEADER VERT 11POS 2.54MM

贸泽:
集管和线壳 11MTE HDR SRST LATCH .100CL

艾睿:
Protect your printed circuit boards from accidental damages with TE Connectivity&s;s shrouded 6-104363-0 header connector. This HDR connector&s;s 11 contacts that are made out of brass and plated with gold over nickel. It has a straight body orientation. Its pitch is 2.54 mm. This is a 1-row connector. It has a header type gender. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. 6-104363-0 is housed in black thermoplastic. This product is 30.48 mm long, 13.59 mm tall and 6.65 mm deep. This connector has an operating temperature of -65 to 105 °C.

安富利:
Conn Shrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Tube

Verical:
Conn Shrouded Header 4 Sides HDR 11 POS 2.54mm Solder ST Thru-Hole Tube

Newark:
# AMP - TE CONNECTIVITY  6-104363-0  Wire-To-Board Connector, 2.54 mm, 11 Contacts, Header, AMPMODU Series, Through Hole, 1 Rows

MASTER:
HEADER ASSY, AMPMODU MTE, VERTICAL, SINGLE ROW, .100 C/L, .025 SQ POSTS

Powell:
.100 AMPMODU Headers, Housings & Contacts

Electro Sonic:
11 MTE HDR SRST LATCH .100CL
