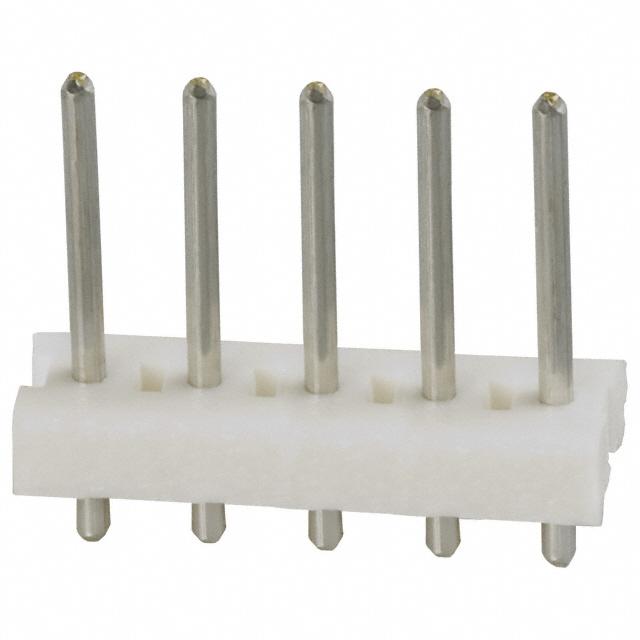

640384-5

Conn Unshrouded Header HDR 5POS 3.96mm Solder ST Thru-Hole

针座 通孔 5 位置 0.156"（3.96mm）

得捷:
CONN HEADER VERT 5POS 3.96MM

艾睿:
Thanks to TE Connectivity&s;s unshrouded 640384-5 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 5 contacts that are made out of copper alloy and plated with tin over nickel. This is a 1-row connector. It has a header type gender. It has a maximum voltage rating of 600 VAC. It has a straight body orientation. Its pitch is 3.96 mm. This device has a maximum current rating of 7 A/contact. 640384-5 is housed in white polyester. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. This product is 19.81 mm long, 13.34 mm tall and 6.35 mm deep.

安富利:
Conn Unshrouded Header HDR 5 POS 3.96mm Solder ST Thru-Hole

Verical:
Conn Unshrouded Header HDR 5 POS 3.96mm Solder ST Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  640384-5  05P MTA156 HDR ASSY STR RND SN

MASTER:
MTA-156 HEADER ASSEMBLY, PLAIN, STRAIGHT, .045 ROUND POST, TIN PLATED

Electro Sonic:
05P MTA156 HDR ASSY STR RND SN
