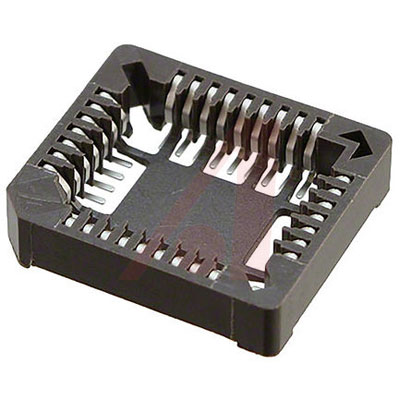

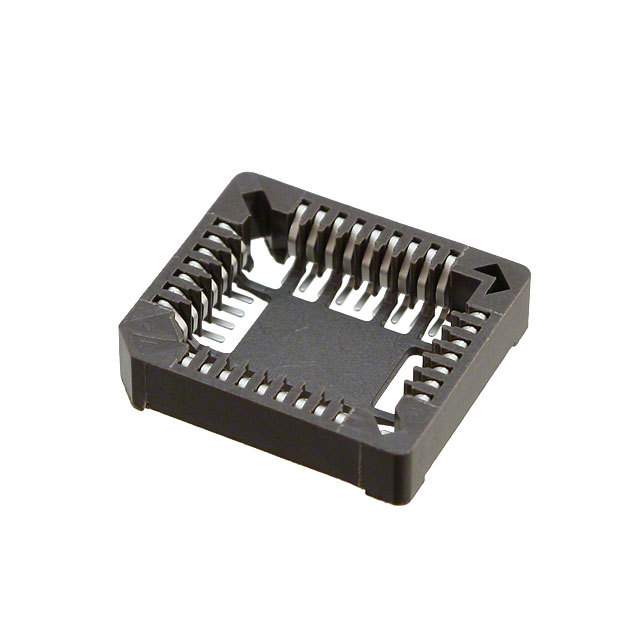

AMPHENOL FCI 69802-432LF 芯片插座, PLCC-32, SMD
Surface Mount PLCC Sockets
PLCC Sockets Plastic Lead Chip Carrier are designed to carry JEDEC Type A chips on 1.27 mm centerlines. Products are available in surface mount and through mount configurations. The low-profile design of PLCC sockets minimizes overall product height.
Features:
* Polarization Indicators Assure Positive Chip Carrier Alignment
* Closed Bottom Prevents Solder Wicking
* Open Center and Stand-Offs Provide for Cooling and Thorough Cleaning After Soldering
* Other Sizes Available
触点数 32
触点电镀 Tin
额定电流 1 A
绝缘电阻 10000 MΩ
针脚数 32
接触电阻 20 mΩ
拔插次数 25
额定电流Max 1A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 120 VAC
接触电阻Max 20 mΩ
安装方式 Surface Mount
封装 PLCC
引脚间距 1.27 mm
长度 17.78 mm
宽度 20.32 mm
高度 4.97 mm
封装 PLCC
引脚间距 1.27 mm
颜色 Brown
触点材质 Copper Alloy
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
