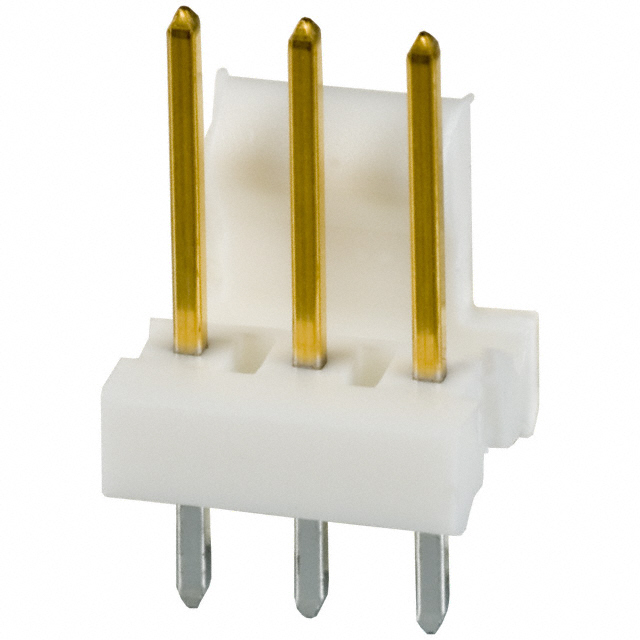

641213-3

Conn Wire to Board HDR 3POS 2.54mm Solder ST Thru-Hole

针座 通孔 3 位置 0.100"（2.54mm）

得捷:
CONN HEADER VERT 3POS 2.54MM

艾睿:
Support physical configuration options for jumper posts by mounting this wire to board 641213-3 header connector from TE Connectivity. This HDR connector&s;s 3 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 2.54 mm. It has a header type gender. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 5 A/contact. This product is 7.62 mm long, 10.03 mm tall and 5.72 mm deep. 641213-3 is housed in white polyester. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Wire to Board HDR 3 POS 2.54mm Solder ST Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  641213-3  03P MTA100 HDR ASSY PO/ST 30AU New

MASTER:
MTA-100 HEADER ASSEMBLY, POLARIZED, NOTCHED, .025 SQUARE STRAIGHT POST, .000030 GOLD PLATED

Electro Sonic:
03P MTA100 HDR ASSY PO/ST 30AU
