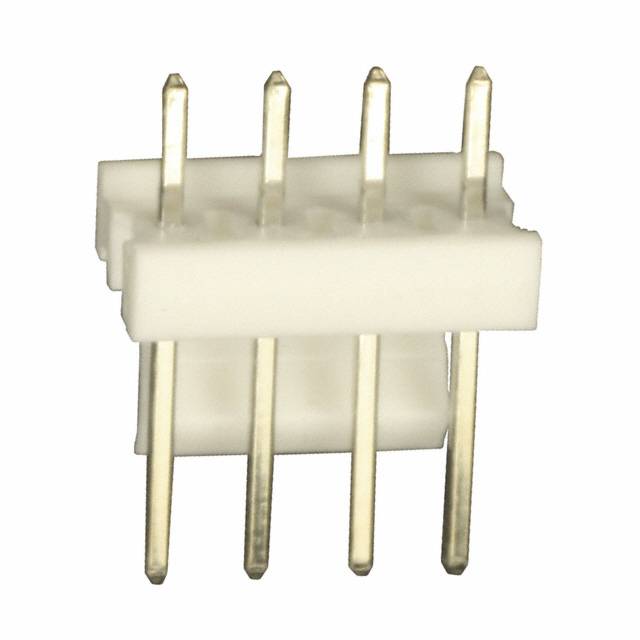

644518-4

Conn Wire to Board HDR 4POS 2.54mm Solder ST Thru-Hole

04P MTA100 HDR ASSY FL STR SN

Product Highlights

MTA-100 Connectors

Number of Positions = 4

Mating Type = Header

Wire-to-Board Application

2.54 mm Contact Centerline Spacing

得捷:
CONN HEADER VERT 4POS 2.54MM

艾睿:
Reduce safety concerns with this wire to board 644518-4 header connector from TE Connectivity which will reduce the possibility of accidentally shorting pins when a printed circuit board is being used. This HDR connector&s;s 4 contacts that are made out of copper alloy and plated with tin. Its pitch is 2.54 mm. It has a header type gender. It has a straight body orientation. This is a 1-row connector. It has a maximum voltage rating of 250 VAC. This device has a maximum current rating of 5 A/contact. It uses the solder termination method. 644518-4 is housed in natural polyester. This product is 10.16 mm long, 10.03 mm tall and 5.71 mm deep. This connector has an operating temperature of -55 to 105 °C.

安富利:
Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole

Verical:
Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Package

Newark:
# AMP - TE CONNECTIVITY  644518-4  04P MTA100 HDR ASSY FL STR SN New

MASTER:
MTA-100 HEADER ASSEMBLY,FRICTION LOCK, NOTCHED,.025 SQUARE STRAIGHT POST, TIN-LEAD PLATED

Electro Sonic:
04P MTA100 HDR ASSY FL STR SN
