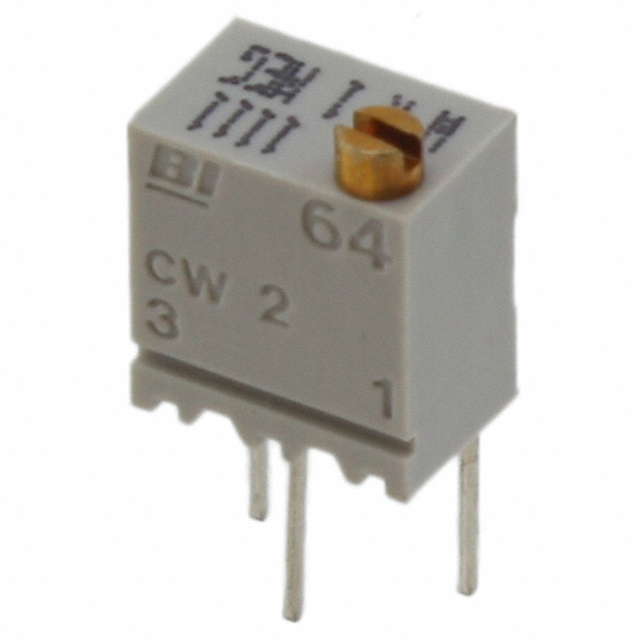

64 系列 1/4 英寸 方形 100 kOhm ±10 % 多圈 微调 电位器
Res Cermet Trimmer 100K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 6.35 X 4.19 X 7.88mm Pin Thru-Hole Tube
得捷:
TRIMMER 100KOHM 0.25W PC PIN TOP
艾睿:
Infrequently adjust the resistor value for your circuit with this 64YR100KLF potentiometer from BI Technologies TT electronics. This product has a resistance value of 100K Ohm. This durable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 6.35 mm long, 7.88 mm tall and 4.19 mm deep. This part has an operating temperature of -65 to 150 °C. This device is made with cermet technology. The 64YR100KLF part has a pin termination style. It has a tolerance of 10%.
Chip1Stop:
Res Cermet Trimmer 100K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 6.35 X 4.19 X 7.88mm Pin Thru-Hole Tube
Verical:
Res Cermet Trimmer 100K Ohm 10% 0.25W1/4W 12ElecTurns 1.78mm 6.35 X 4.19 X 7.88mm Pin Thru-Hole T/R
MASTER:
Res Cermet Trimmer 100K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 6.35 X 4.19 X 7.88mm Pin Thru-Hole Tube
Electro Sonic:
Res Cermet Trimmer 100K Ohm 10% 0.25W1/4W 12ElecTurn 1.78mm 6.35 X 4.19 X 7.88mm Pin Thru-Hole Tube
