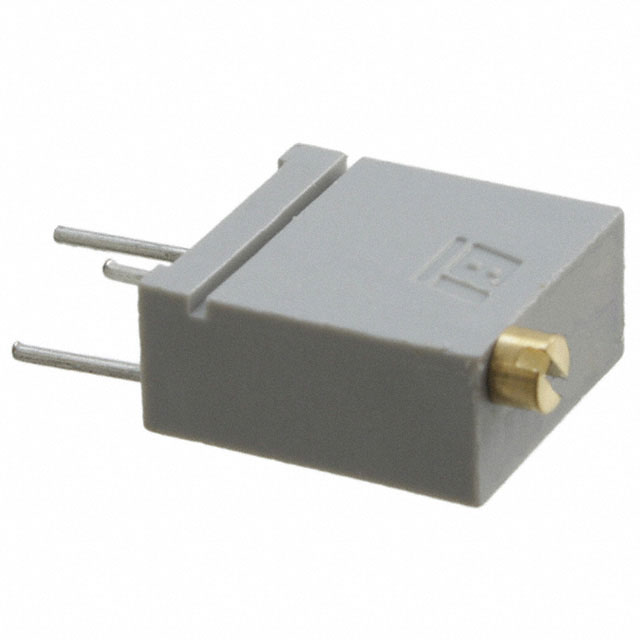

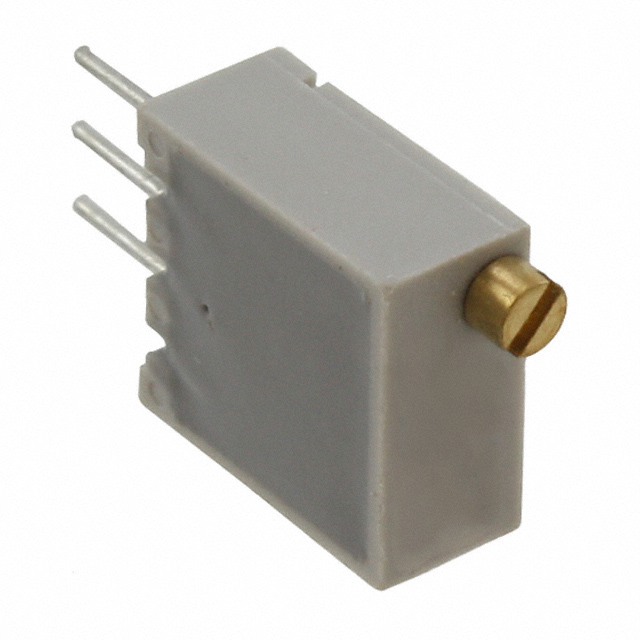

BI TECHNOLOGIES / TT ELECTRONICS 67YR50KLF 微调电位器, 50KΩ
50 kOhms 0.5W，1/2W PC 引脚 通孔 微调电位计 金属陶瓷 20.0 匝 顶部调节
得捷:
TRIMMER 50K OHM 0.5W PC PIN TOP
e络盟:
微调电位器, 50KΩ 20转, 通孔安装
艾睿:
Optimize functionality in your circuit by placing this 67YR50KLF potentiometer from BI Technologies TT electronics at critical points. This product has a resistance value of 50K Ohm. This part has a power rating of 0.5 1/2 W. Its temperature coefficient is ±100 ppm/°C. This product is 9.53 mm long, 11.98 mm tall and 4.95 mm deep. It has a tolerance of 10%. The 67YR50KLF part has a pin termination style. This part has an operating temperature of -55 to 125 °C. This device utilizes cermet technology.
Chip1Stop:
Res Cermet Trimmer 50K Ohm 10% 0.5W1/2W 20ElecTurn 2.29mm 9.53 X 4.95 X 11.98mm Pin Thru-Hole Box
Verical:
Res Cermet Trimmer 50K Ohm 10% 0.5W1/2W 20ElecTurn 2.29mm 9.53 X 4.95 X 11.98mm Pin Thru-Hole Box
Newark:
# BI TECHNOLOGIES / TT ELECTRONICS 67YR50KLF Trimmer Potentiometer, Through Hole, 50 kohm, 500 mW, ± 10%, 67 Series, 20 Turns, Through Hole
MASTER:
Res Cermet Trimmer 50K Ohm 10% 0.5W1/2W 20ElecTurn 2.29mm 9.53 X 4.95 X 11.98mm Pin Thru-Hole Box
Online Components:
Res Cermet Trimmer 50K Ohm 10% 0.5W1/2W 20ElecTurn 2.29mm 9.53 X 4.95 X 11.98mm Pin Thru-Hole Box
Electro Sonic:
Res Cermet Trimmer 50K Ohm 10% 0.5W1/2W 20ElecTurn 2.29mm 9.53 X 4.95 X 11.98mm Pin Thru-Hole Box
